Ansuz / Ethernet Cable

Digitalz A2

Spacious presentation of a pristine sound

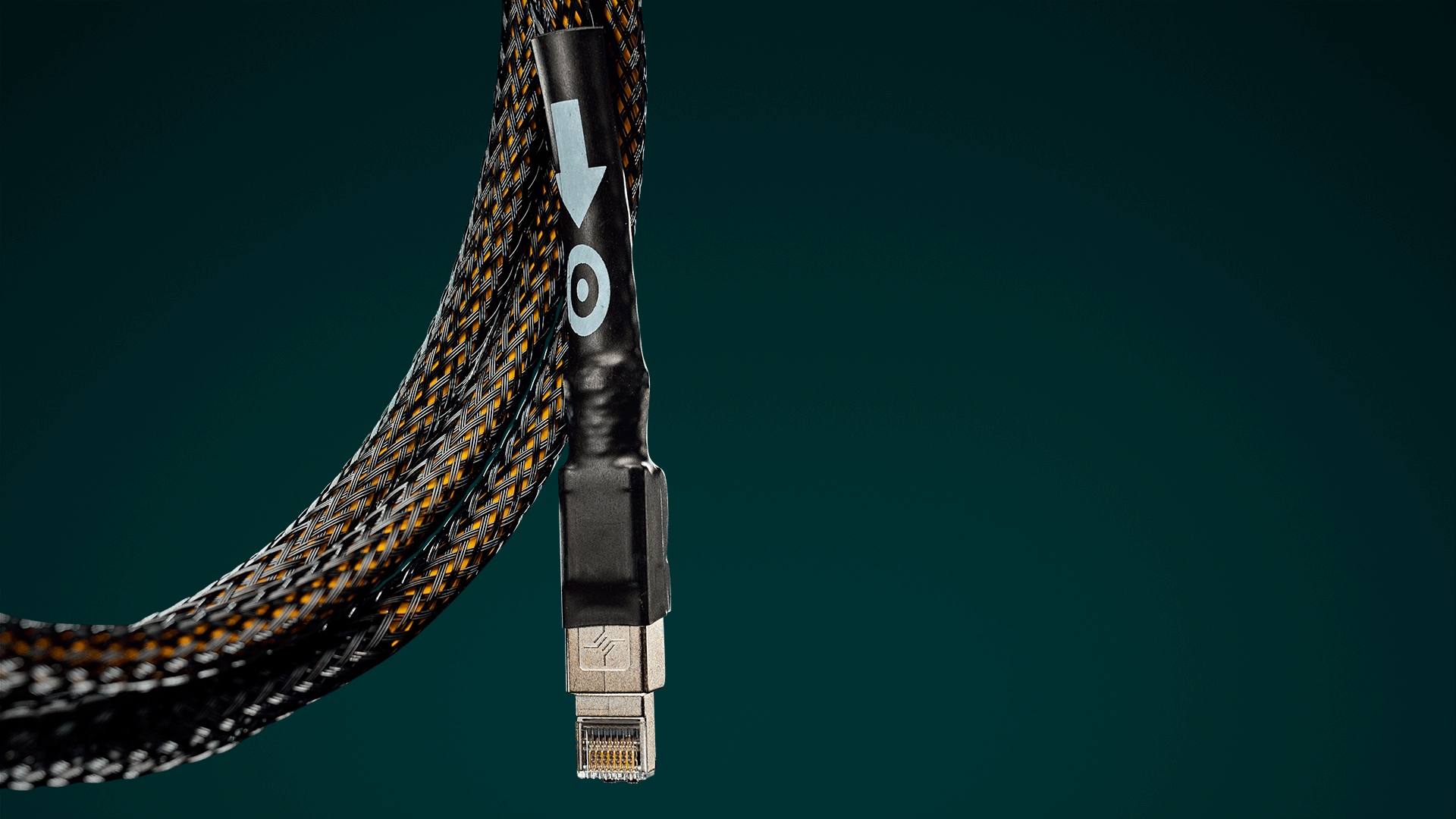

The Ansuz Digitalz Ethernet A2 cable is fitted with Ansuz’s noise reduction technology. Double inverted helix coils radically reduce the sonic noise effects of induction and provide more energy to the music presented on a more expanded and holistic soundstage.

See more photos

Close

Technologies and Components

Cutting edge technologies.
Ansuz develops and manufactures cables based on advanced, cutting edge technologies. Ansuz cables deliver a pure signal flow that unleashes the authentic sound originally intended by the master recording. To achieve this, it is imperative to lower resistance, curb induction and reduce noise floor to a minimum. The more advanced the cable series, the more refined and sophisticated the implemented technologies, and the more transparent, holistic and authentic the resulting soundstage.

4×2

PCS

Twisted pair

2

PCS

Passive end Tesla coils

1

PCS

Passive cable Tesla coil

Connectors

Golden connection.
The connectors are made of gold-plated pure copper.

Conductors Ethernet

Carefully tuned signal handling.
Conductors consist of eight wires, each made of shielded, silver-plated copper.

The Tesla coil principle

The key operating principle of the Ansuz Tesla coil is to have two coils wound in opposite directions – one coil and one counter coil. In Ansuz words, this is called “A double inverted coil”. The two coils both carry voltage, and when one of the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise. Since noise spikes are pure voltage carrying virtually no charge, the cancelation is quite good, but not perfect. Adding more Tesla coils in parallel, increases the noise cancellation and the perceived blackness in the music increases significantly along with the purity and clarity of the sound. Ansuz uses various types of Tesla coils, as their individual properties ideally complement and reinforce each other.

Passive end coil technology

Noise control.
The passive end coil prevents noise in bleeding into the audio components. The Tesla coil is mounted just before the connector and when the Tesla coils encounters a voltage spike, a counter spike is activated to eliminate the noise.

Passive cable Tesla coils

Airborne noise elimination.
The passive cable Tesla coil is wound around the outer part of the cable and protects the cable from absorbing disturbing airborne RF noise. This noise is absorbed in the Tesla coil and eliminated in the counter coil. When voltage flows through the cable’s conductor, which is wound in the opposite direction, it operates as this counter coil, which eliminates the RF noise.

Chromed steel housing – Beautiful strong surface

The housing is made of metal and chromatized with in-house made laser engravings.

Twisted Pair

Twisted pair cabling is a type of wiring in which two conductors of a single circuit are twisted together. Compared to a single conductor or an untwisted balanced pair, a twisted pair reduces electromagnetic radiation from the pair and crosstalk between neighboring pairs and improves rejection of external electromagnetic interference. For additional noise immunity, the twisted-pair is shielded individually.

Read more

Close

REVIEWS & AWARDS

  • Subject: Ansuz PowerSwitch A2, Digitalz, Mainz

    Author: Jason Kennedy, The Ear

Read more

Close

Specifications

Standard length: 1 m
39,4 Inches
Termination: RJ45

More about the speaker

Close

Ethernet Cable Technology Table

More about the technology

Close

Passive end coil technology

Conductors

Connector

Housing

Twisted Pair

Ansuz Passive Cable Tesla Coil Technology

Ansuz Active Cable Tesla Coil technology

This is an active noise suppressing element that rely on Mains spike noise cancellation. The way they work is to have a double inverted coil connected to the power conductors, when the AC-TC dual coil encounters a voltage spike a counter spike is developed in the counter wound section of the AC-TC coil. As Noise spikes are pure voltage and carries virtually no charge, the cancelation is quite good, but not 100%. By adding more AC-TC coils in parallel the performance increases. And with that the perceived Blackness in the music improves significantly. So, AC-TC is similar to A-TC. But where the A-TC technology is mounted on the circuitry boards the AC-TC coils are mounted directly around the mains conductors to increase the effect even further.

Ansuz PowerBox Connection

Charged Dielectric Technology

Close

Passive end coil techn…

Conductors

Connector

Housing

Twisted Pair

Ansuz Passive Cable Te…

Active Cabel Tesla Coils

Ansuz PowerBox Connection

Charged Dielectric Tec…

Ansuz Digitalz X2 /Ethernet cable

Passive end coil technology

1×70 cm

Conductors

8+12 shielded, silver plated copper

Connector

Gold plated

Housing

Chromed steel

Twisted Pair

4×2

Ansuz Passive Cable Tesla Coil Technology

Active Cabel Tesla Coils

Ansuz PowerBox Connection

Charged Dielectric Technology

Ansuz Digitalz A2 / Ethernet cable

Passive end coil technology

2×70 cm

Conductors

8+24 shielded, silver plated copper

Connector

Gold plated

Housing

Chromed steel

Twisted Pair

4×2

Ansuz Passive Cable Tesla Coil Technology

1×148 cm

Active Cabel Tesla Coils

Ansuz PowerBox Connection

Charged Dielectric Technology

Ansuz Digitalz D2 / Ethernet cable

Passive end coil technology

2×70 cm

Conductors

8+24 shielded. silver plated copper

Connector

Gold plated

Housing

Chromed steel

Twisted Pair

4×2

Ansuz Passive Cable Tesla Coil Technology

1×148 cm

Active Cabel Tesla Coils

4×49 cm

Ansuz PowerBox Connection

Possible upgrade

Charged Dielectric Technology

Ansuz Digitalz D-TC2 / Ethernet cable

Passive end coil technology

2×70 cm

Conductors

8+24 shielded, silver plated copper

Connector

Gold plated

Housing

Chromed steel

Twisted Pair

4×2

Ansuz Passive Cable Tesla Coil Technology

1×148 cm

Active Cabel Tesla Coils

4×49 cm

Ansuz PowerBox Connection

Required

Charged Dielectric Technology

*

Ansuz Digitalz D-TC Supreme / Ethernet cable

Passive end coil technology

2×70 cm

Conductors

8+24 shielded, silver plated copper

Connector

Gold plated

Housing

Chromed steel

Twisted Pair

4×2

Ansuz Passive Cable Tesla Coil Technology

Active Cabel Tesla Coils

8×70 cm

Ansuz PowerBox Connection

Required

Charged Dielectric Technology

*
