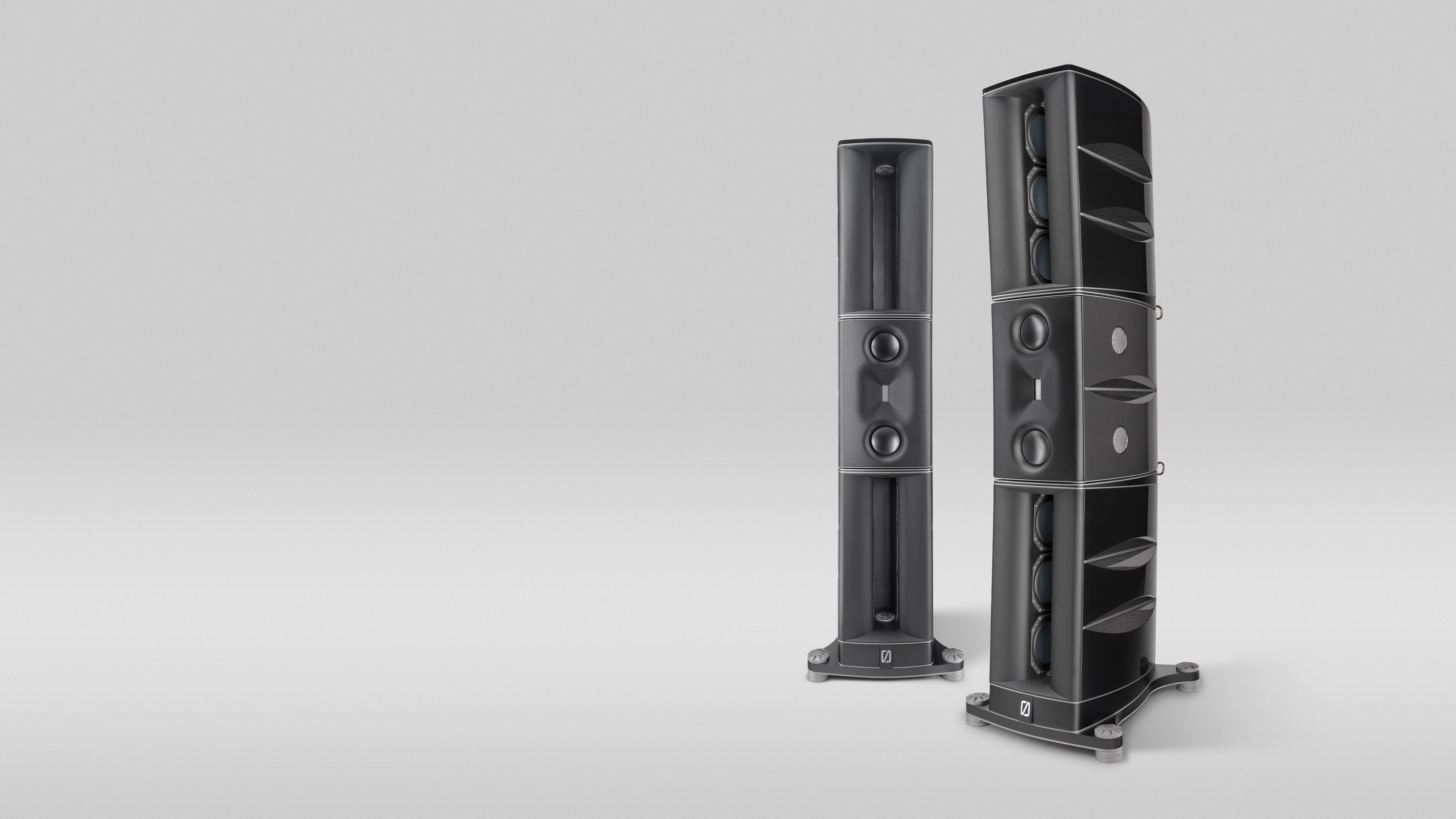

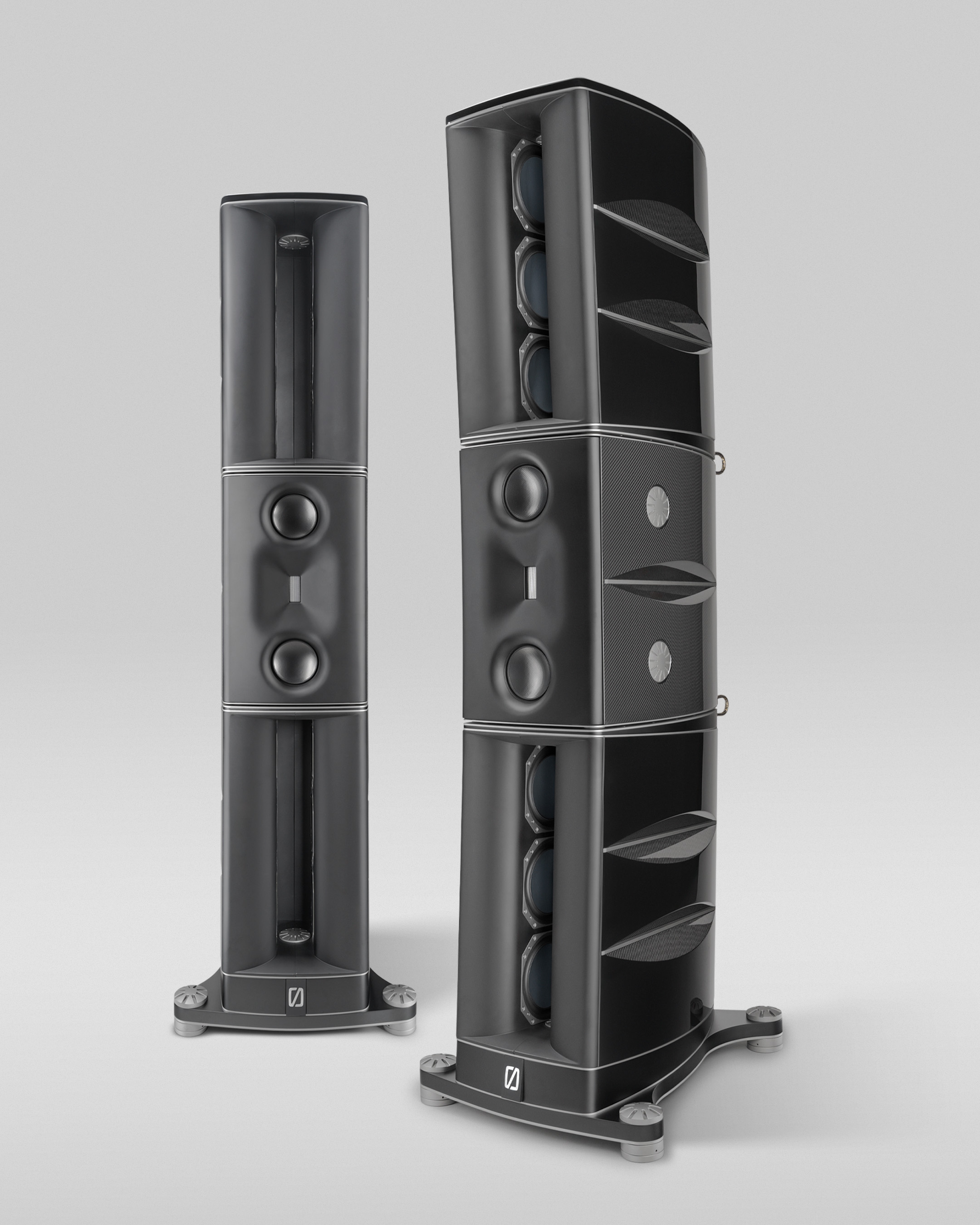

Børresen M8 Gold Signature

The Iron-Free Magnet Motor

Perfect symmetry. Unrestrained speed. Absolute control.

When Michael Børresen identified that iron in a conventional driver’s magnetic system introduces high inductance—causing the voice coil to react sluggishly and blur fine musical detail—he set out to remove iron entirely from the motor. Eliminating iron, however, also removes the traditional means of directing magnetic flux, making a conventional redesign impossible. The solution required a completely new magnetic architecture, developed from first principles.

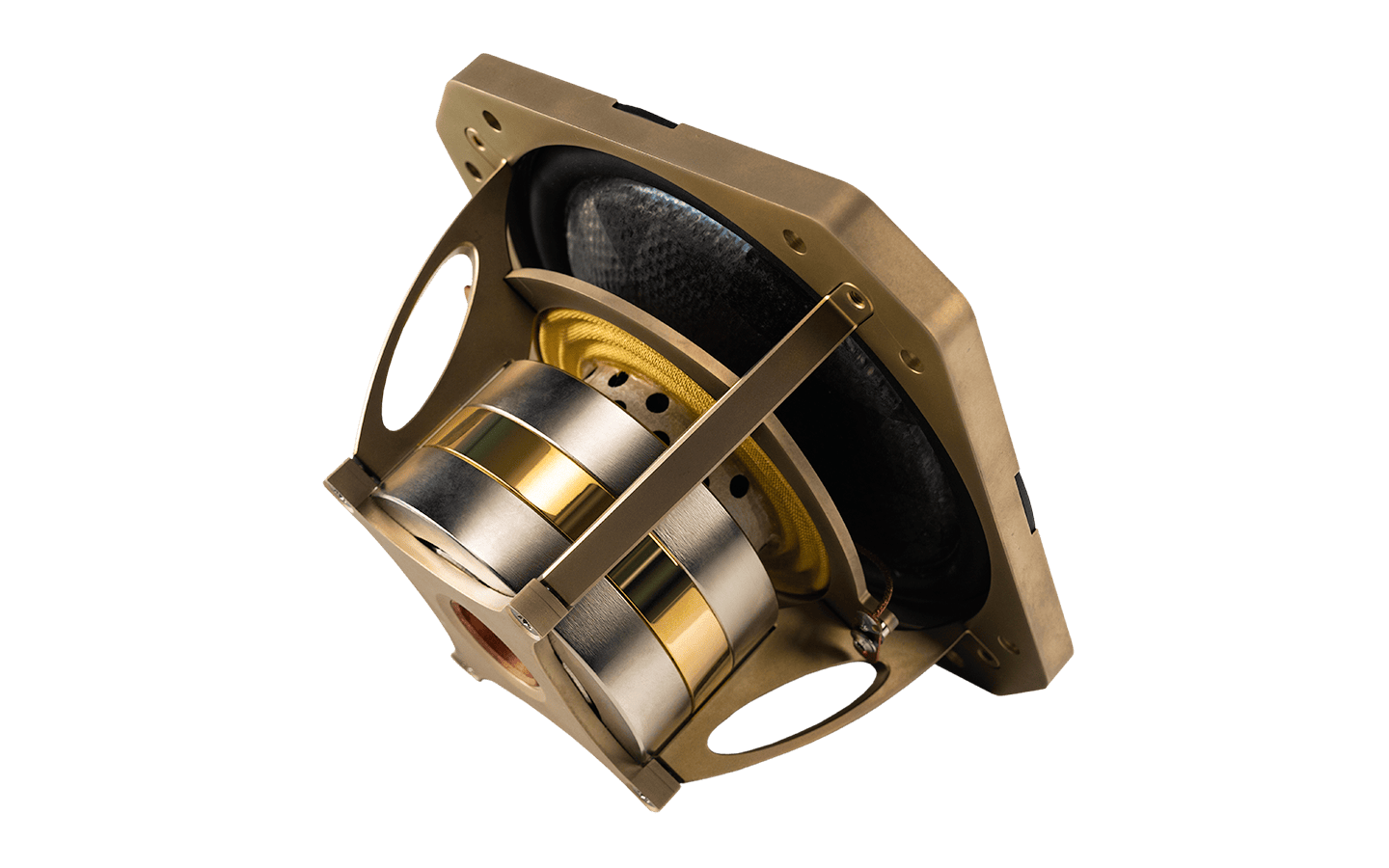

Instead of a single permanent magnet with iron pole pieces, the iron-free magnet motor uses four neodymium (N52) magnet rings arranged in mirrored, repelling pairs—two outer rings and two inner rings surrounding the voice coil. These magnets are mechanically compressed to form a perfectly symmetrical structure that distributes magnetic flux evenly across the narrow voice-coil gap. The result is a homogeneous magnetic field that remains stable at every position of the voice coil, ensuring linear motion without the hysteresis and energy storage associated with iron-based systems.

To stabilize the immense repelling forces between the magnet pairs and preserve the precise geometry of the gap, highly conductive, non-magnetic pole rings are inserted between the magnets. The previously released M-series drivers employ rings made from cryogenically processed silver, selected for its exceptional electrical conductivity and thermal performance. As the voice coil modulates the magnetic field during operation, eddy currents induced in the silver rings counteract these changes via the Lenz effect, dramatically reducing flux variation and electromagnetic damping.

The result is an extraordinary reduction in inductance—from approximately 0.5 mH in free air to as little as 0.055 mH within the iron-free system—eliminating nearly 90% of magnetic flux variation during playback. With far less resistance to rapid current changes, the voice coil responds instantly and precisely, delivering exceptional resolution, midrange clarity, and dynamic realism.

For the Børresen M8 Gold Signature, we returned to the drawing board to develop a pole ring capable of further reducing inductance in the voice coil gap. Building on the proven performance of our cryo-processed silver pole pieces, we explored additional non-magnetic, highly conductive materials. It soon became clear that a single material would not suffice — a hybrid solution was required. Inspired by the Ansuz Gold Signature wiring, we created a copper ring layered with silver and gold, which was then subjected to cryogenic processing. This innovative approach not only lowered the inductance beyond our initial targets but also exceeded our performance expectations, delivering unprecedented linearity and responsiveness in the voice coils of drivers used in the M8 Gold Signature.

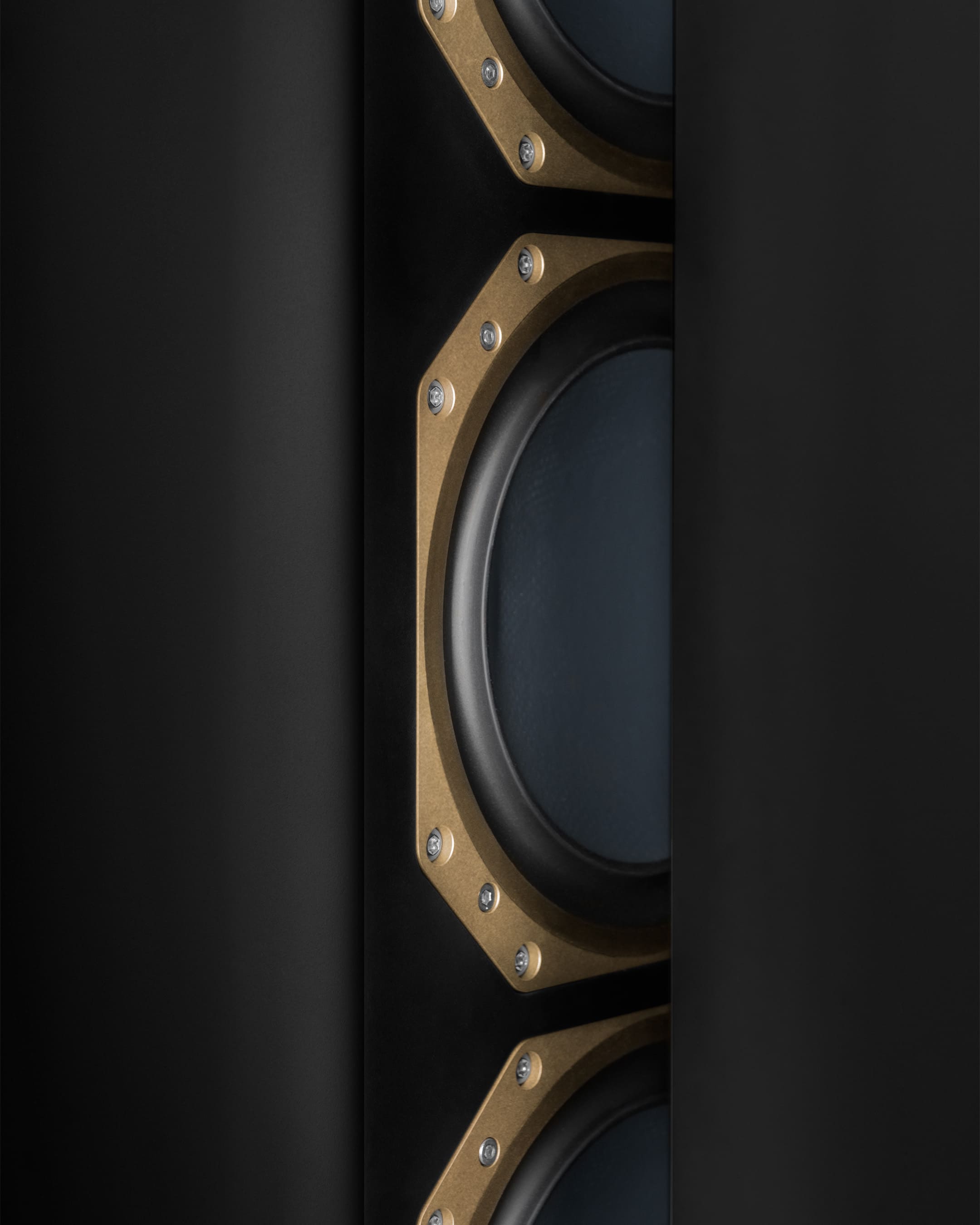

The Basket

Compression and tension between a driver’s magnet system and membrane generate vibrations that travel through the basket, potentially introducing distortion and limiting overall performance. At Børresen, the basket is treated as a critical structural component—not merely a mechanical support, but an essential element in controlling resonance and preserving tonal integrity.

An ideal basket must rapidly damp the minute oscillations produced during membrane excursion. If these vibrations are allowed to persist, the basket itself can resonate and radiate unwanted energy into the system. To prevent this, the basket must combine extreme rigidity with outstanding damping properties.

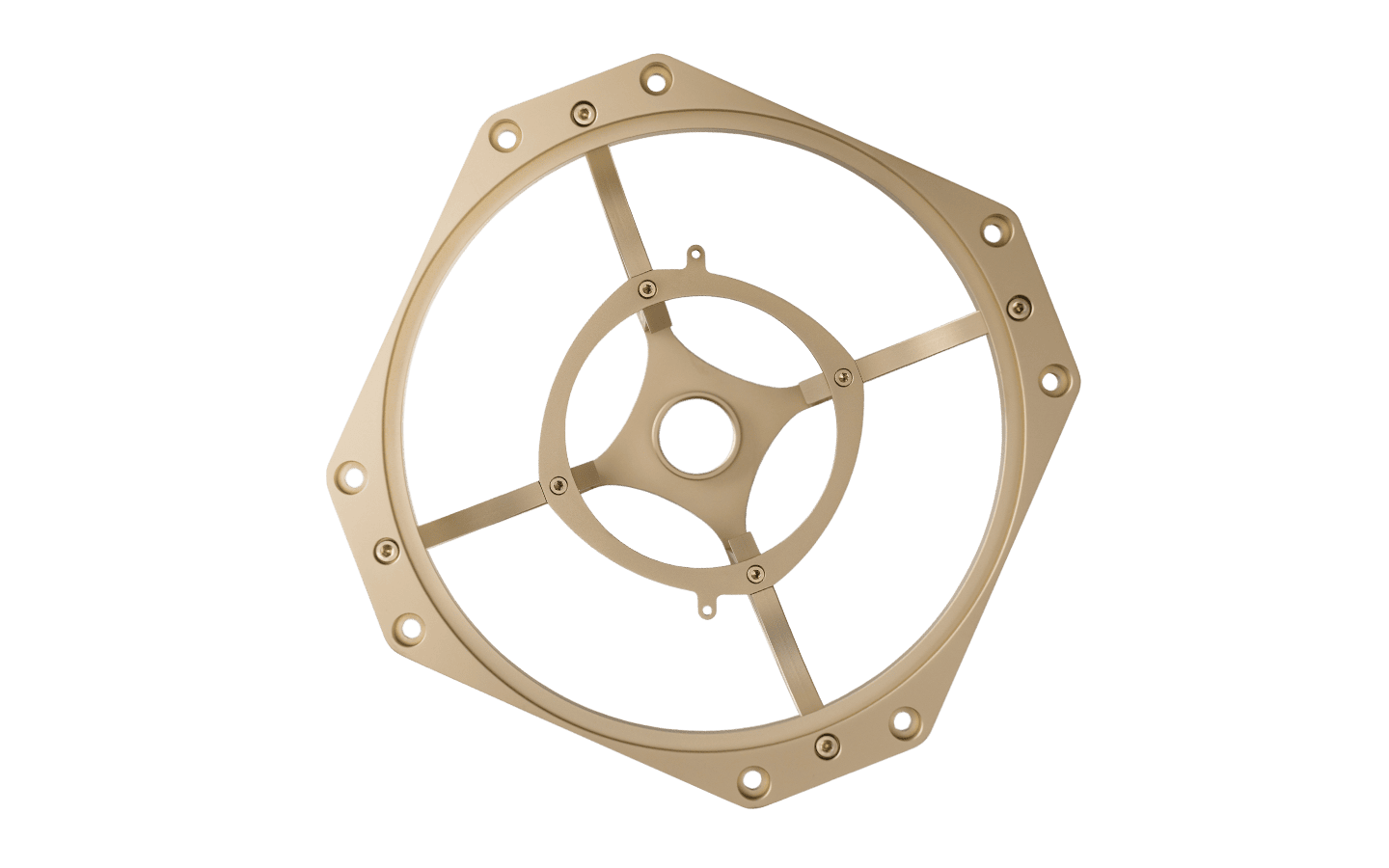

For the M8 Gold Signature, Børresen developed an advanced basket milled from a solid block of austenitic stainless steel. The structure is coated with the latest Ansuz Signature surface treatment—a thin, multi-layer application of titanium, zirconium, hafnium, and their nitrides—designed to enhance stiffness, damping, and acoustic neutrality. The finished basket then undergoes extensive cryogenic processing, further optimizing its mechanical behavior.

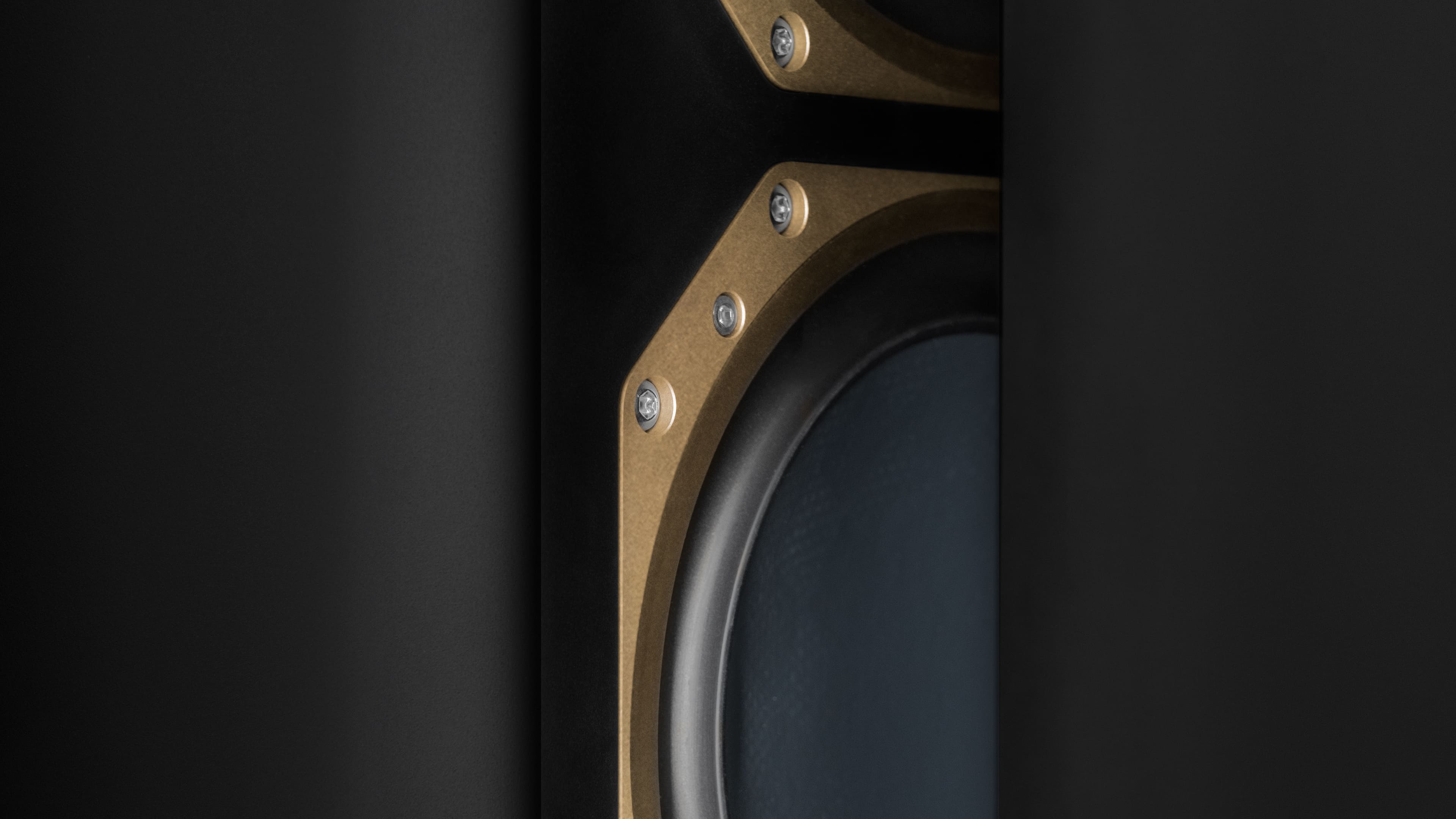

This uncompromising construction forms the foundation of the IronFree5 Gold Signature midrange drivers and IronFree8 Gold Signature woofers, ensuring mechanical silence and absolute control under even the most demanding operating conditions.

The Membrane

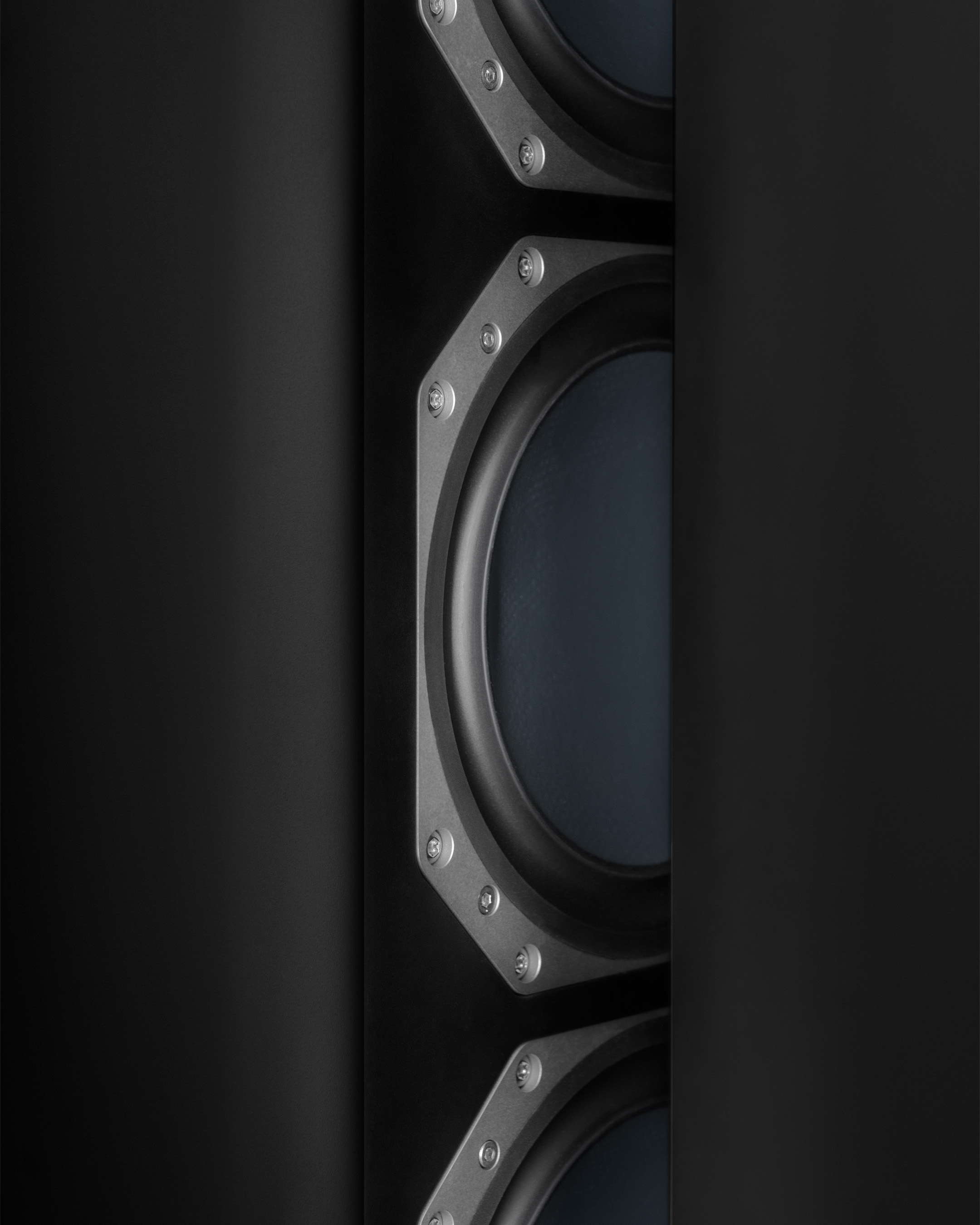

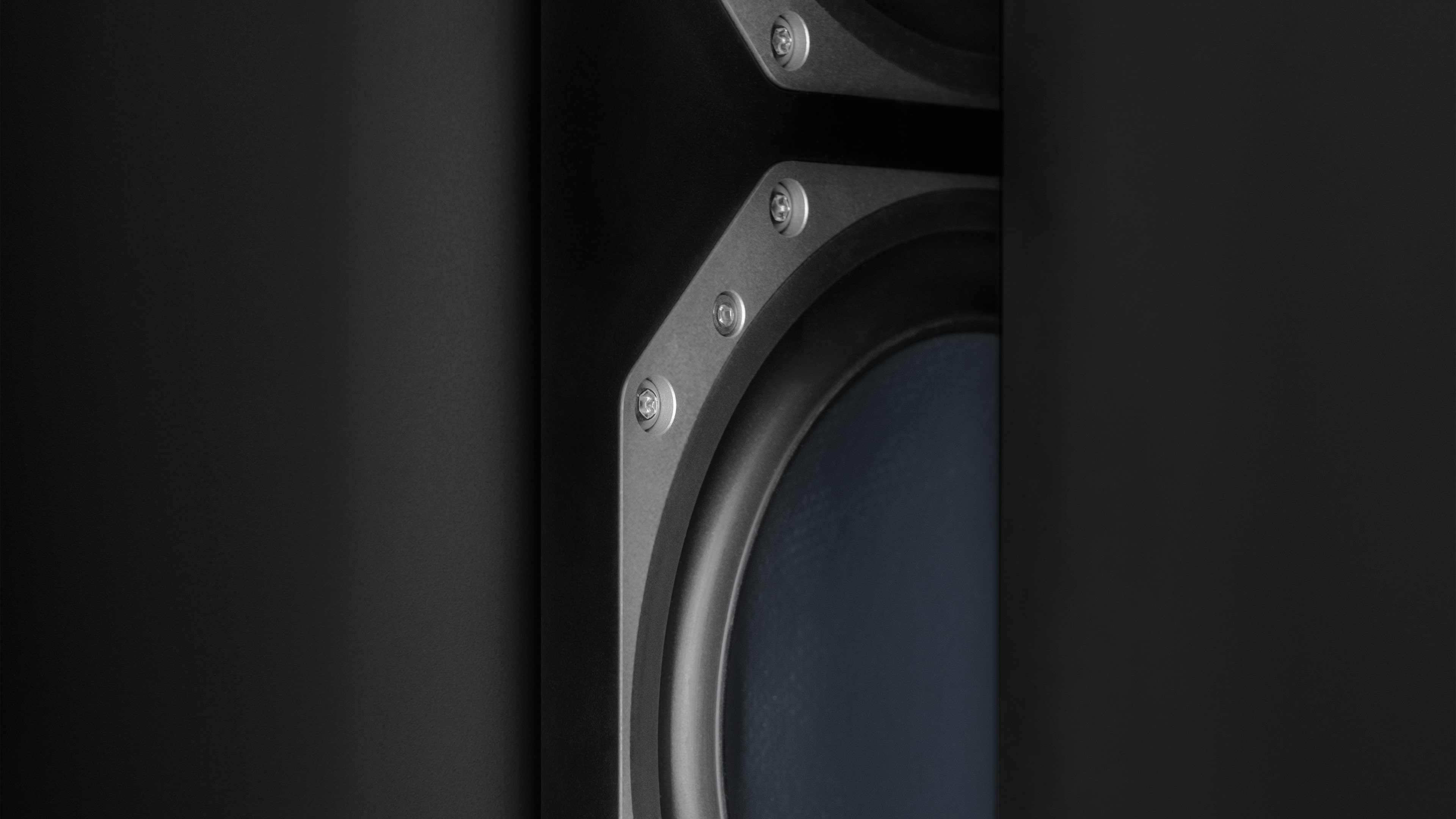

The IronFree8 Gold Signature woofer employs a three-layer laminate membrane consisting of an aramid honeycomb core sandwiched between two carbon-fiber skins. This structure delivers exceptional stiffness in all directions while remaining extremely light. The carbon fiber skins suppress vibrations and resonances, including those occurring well above the driver’s operating range, while the aramid core provides outstanding stiffness-to-weight ratio in the vertical plane.

To further enhance performance, graphene and boron whiskers are incorporated into the epoxy resin, strengthening the molecular crosslinks between carbon fibers. This increases overall rigidity, lowers the noise floor, and improves transient response without adding mass.

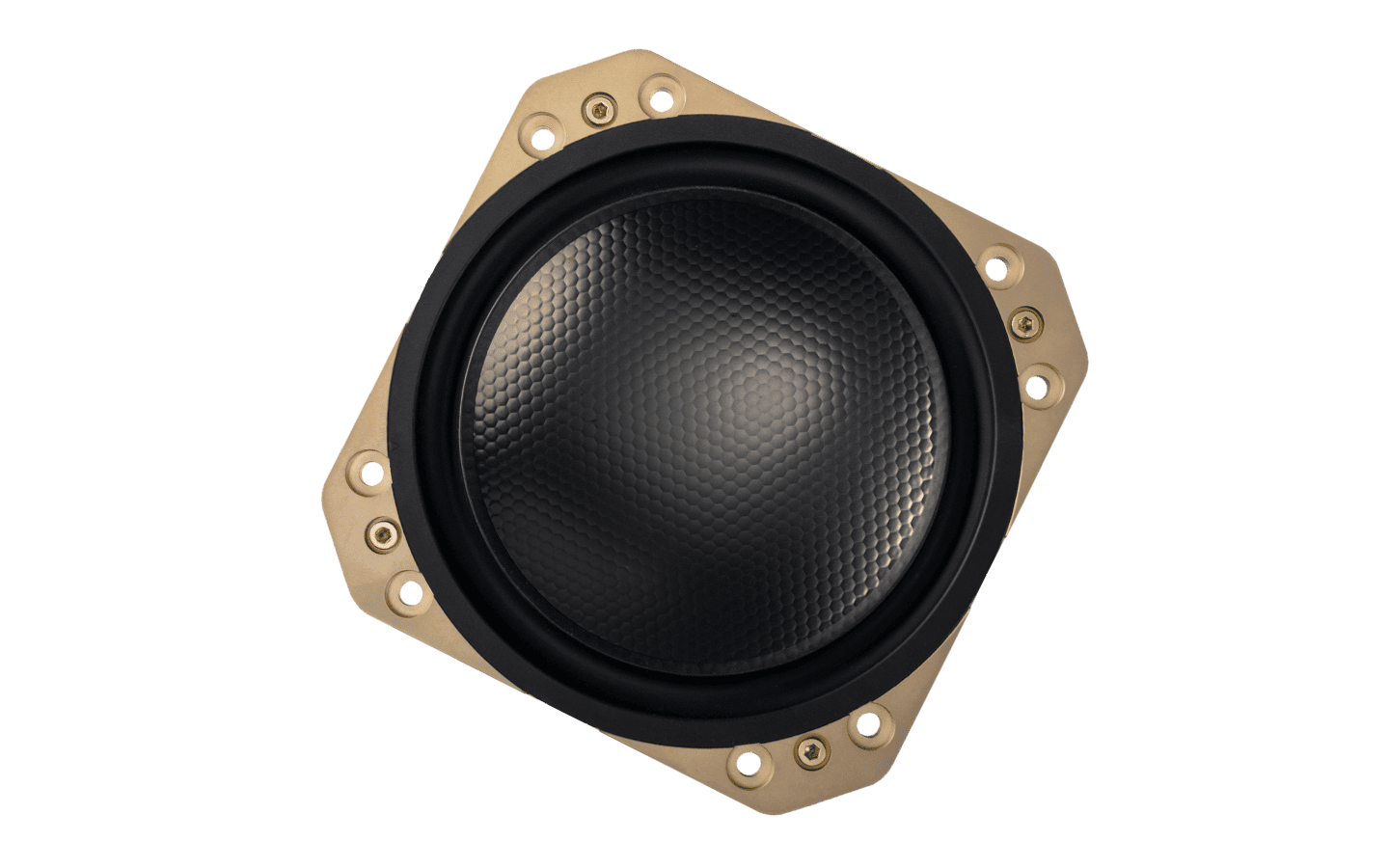

The IronFree5 Gold Signature midrange driver builds on the same fundamental laminate structure, enhanced with an outer titanium layer and an advanced HI-PIMS process that applies an ultra-thin surface coating of zirconium, titanium, hafnium, and their nitrides. This Ansuz Signature treatment pushes residual resonances even further beyond the operational bandwidth, delivering exceptional clarity, speed, and musical precision.

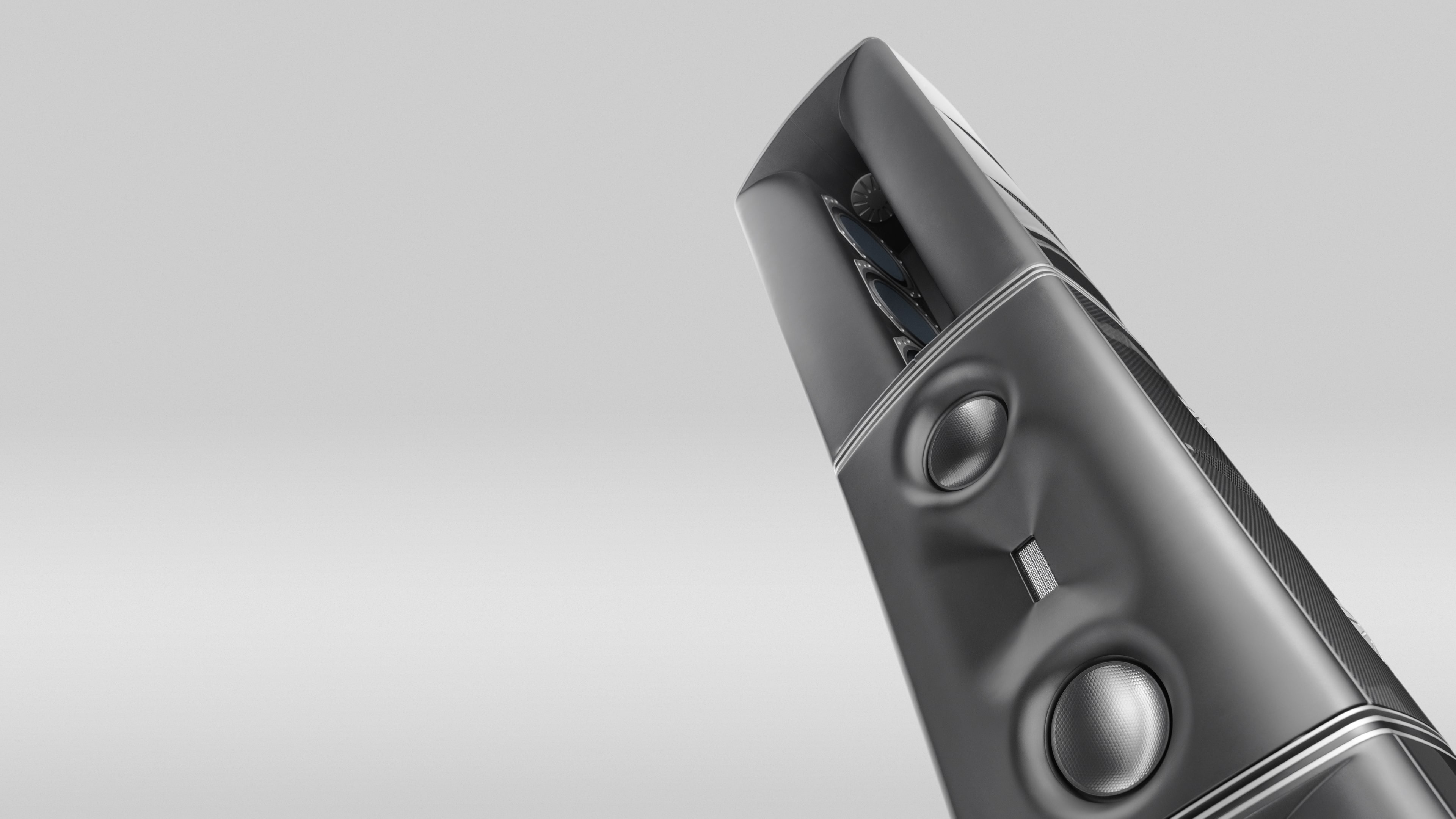

The Tweeter

All Børresen M-series loudspeakers are equipped with the RP94 ribbon tweeter, a highly efficient design operating from 2.5 kHz upward with a sensitivity of 94 dB. Its aluminum-coated nylon/aramid ribbon membrane weighs just 0.01 grams, giving it an extraordinarily low moving mass and enabling lightning-fast transient response.

Despite its extreme lightness, the tweeter is remarkably robust. The fully enclosed motor system maintains linear behavior even under severe dynamic peaks, with no audible distortion or breakup across its operating range. The ribbon membrane is capable of withstanding temperatures of up to 600 °C without degradation, ensuring long-term stability and reliability.

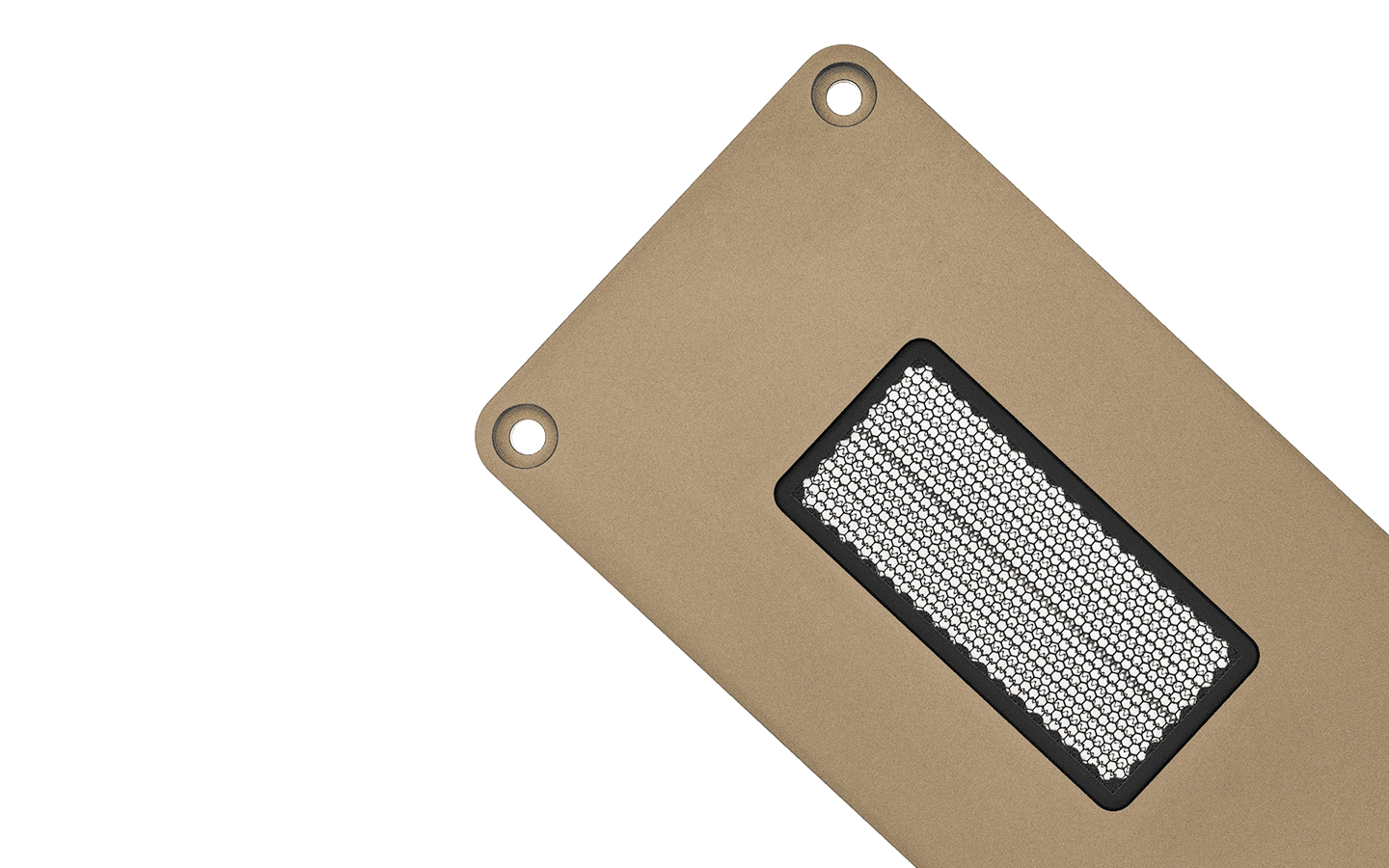

The M8 Gold Signature features the RP94 Signature tweeter, built with a stainless-steel front plate treated with the Ansuz Signature surface process. This refinement improves the driver’s mechanical stability and resonance behavior, elevating resolution while maintaining effortless composure at all listening levels.

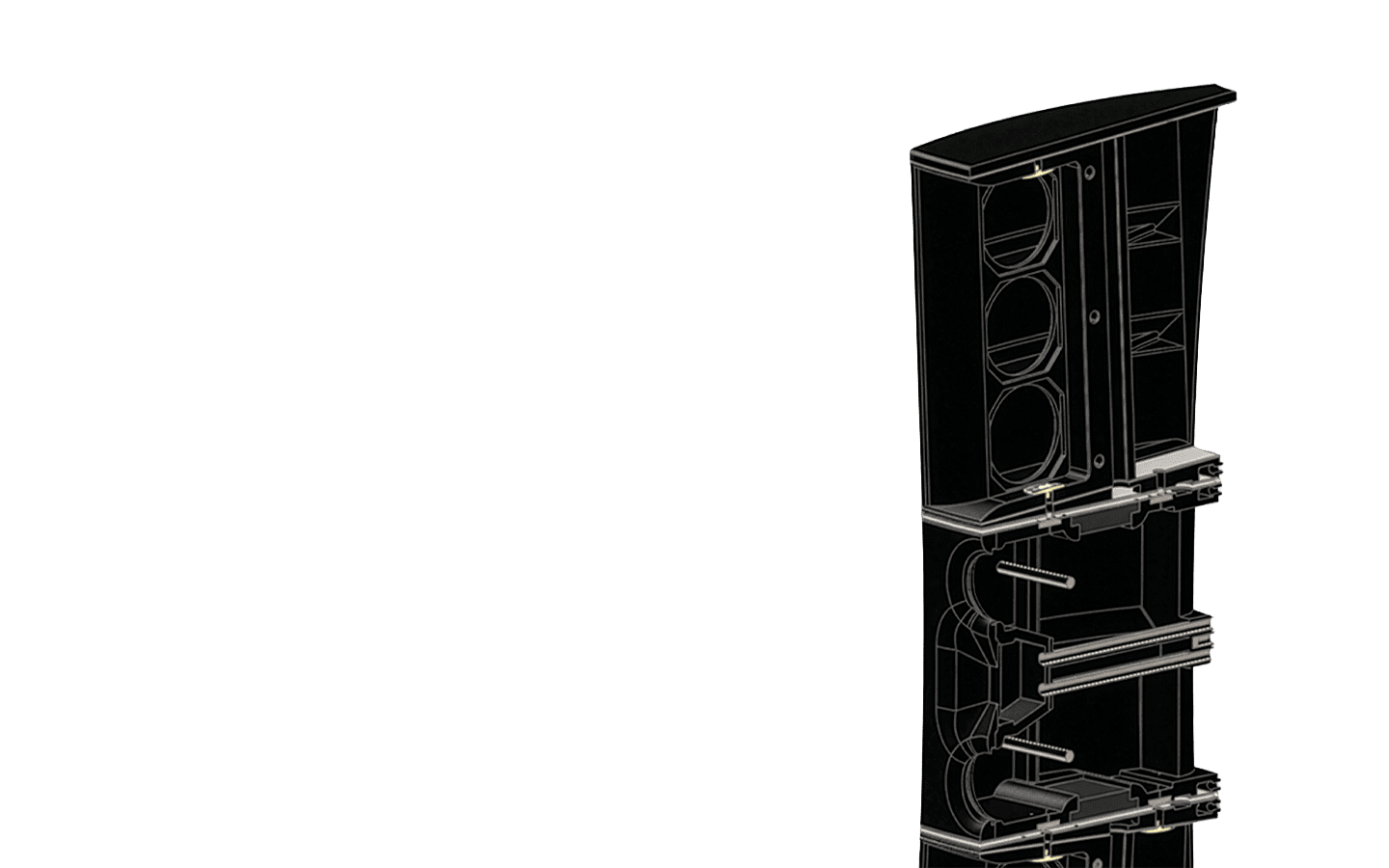

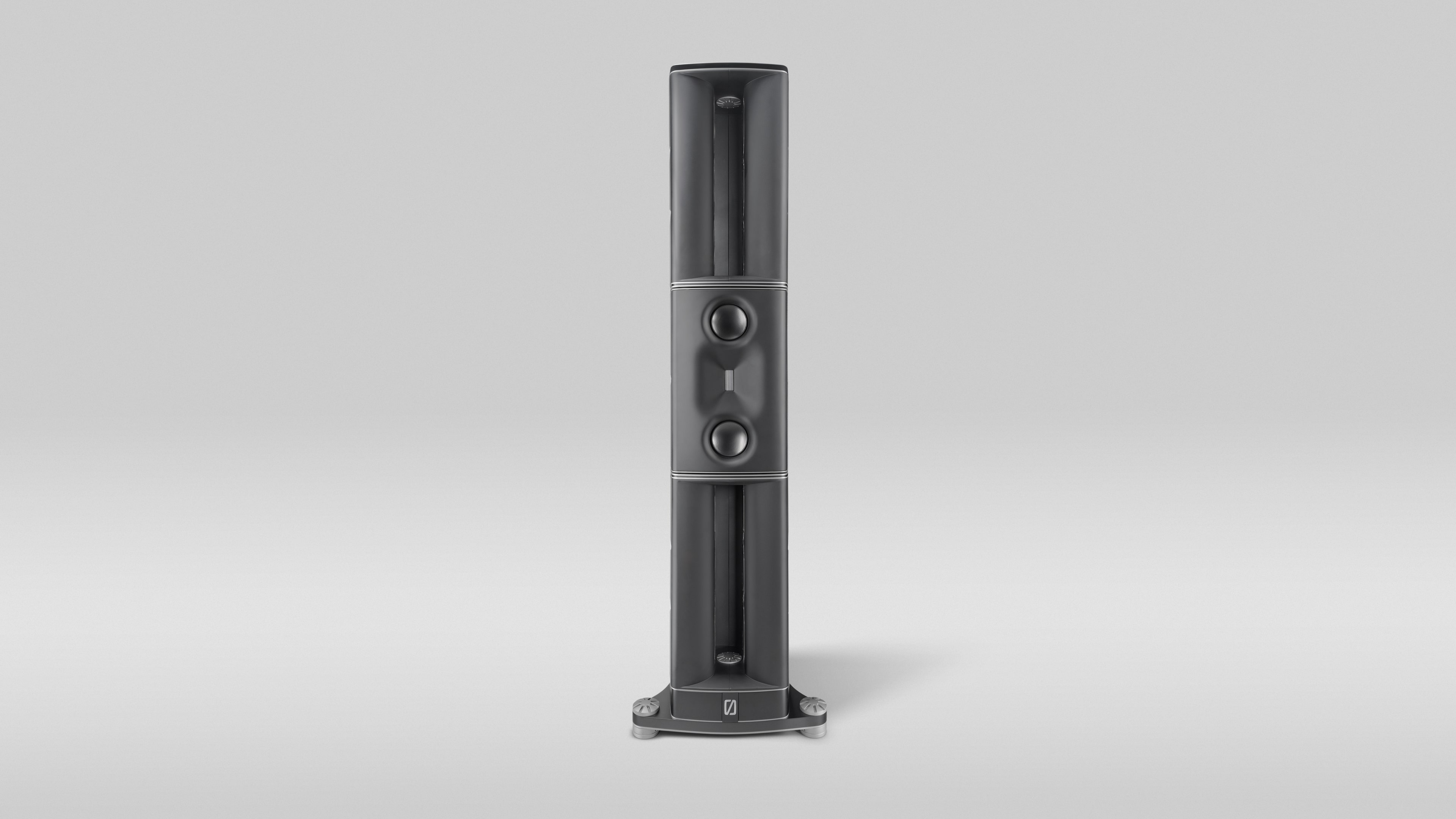

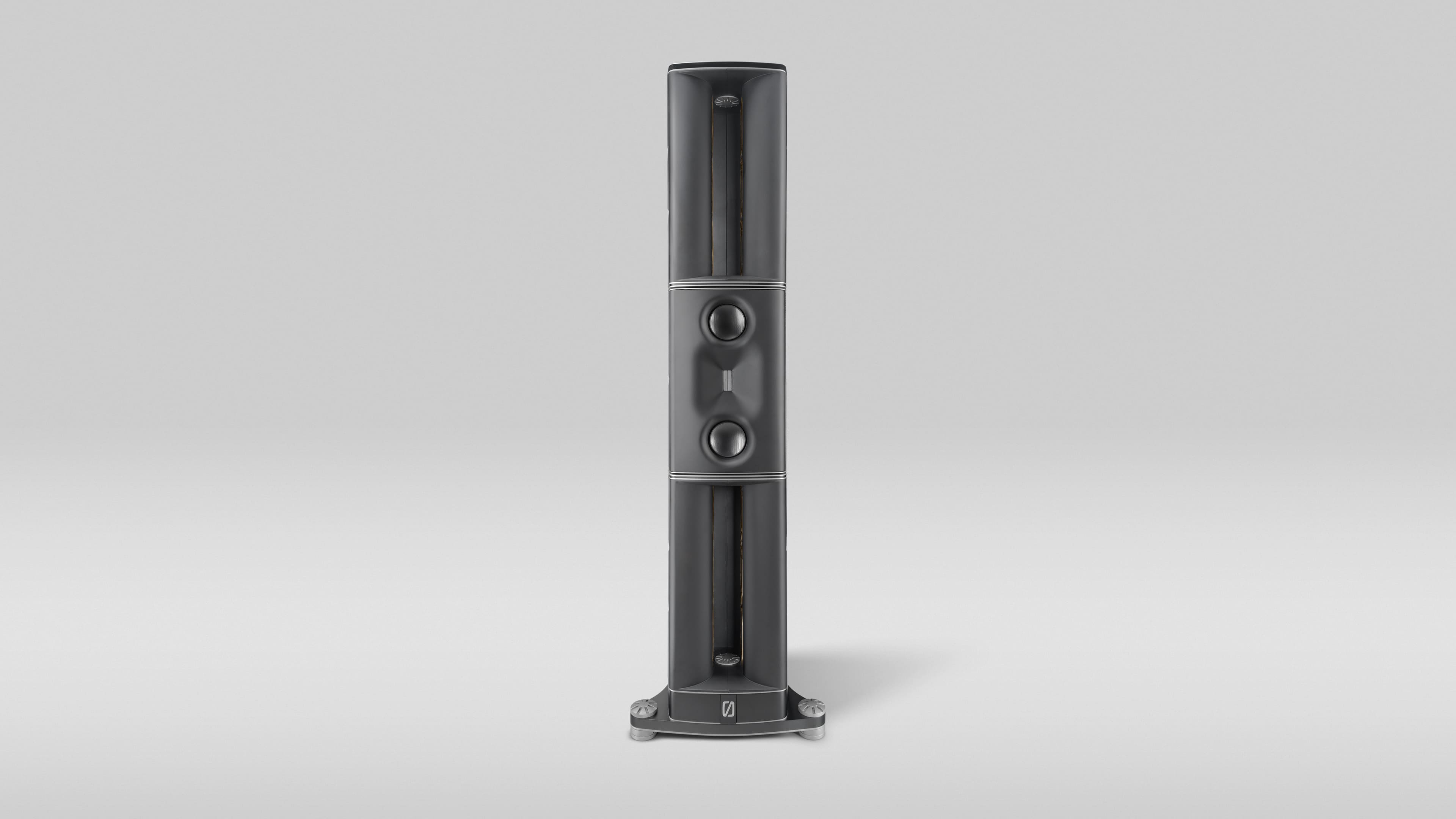

Advanced Cabinet Construction

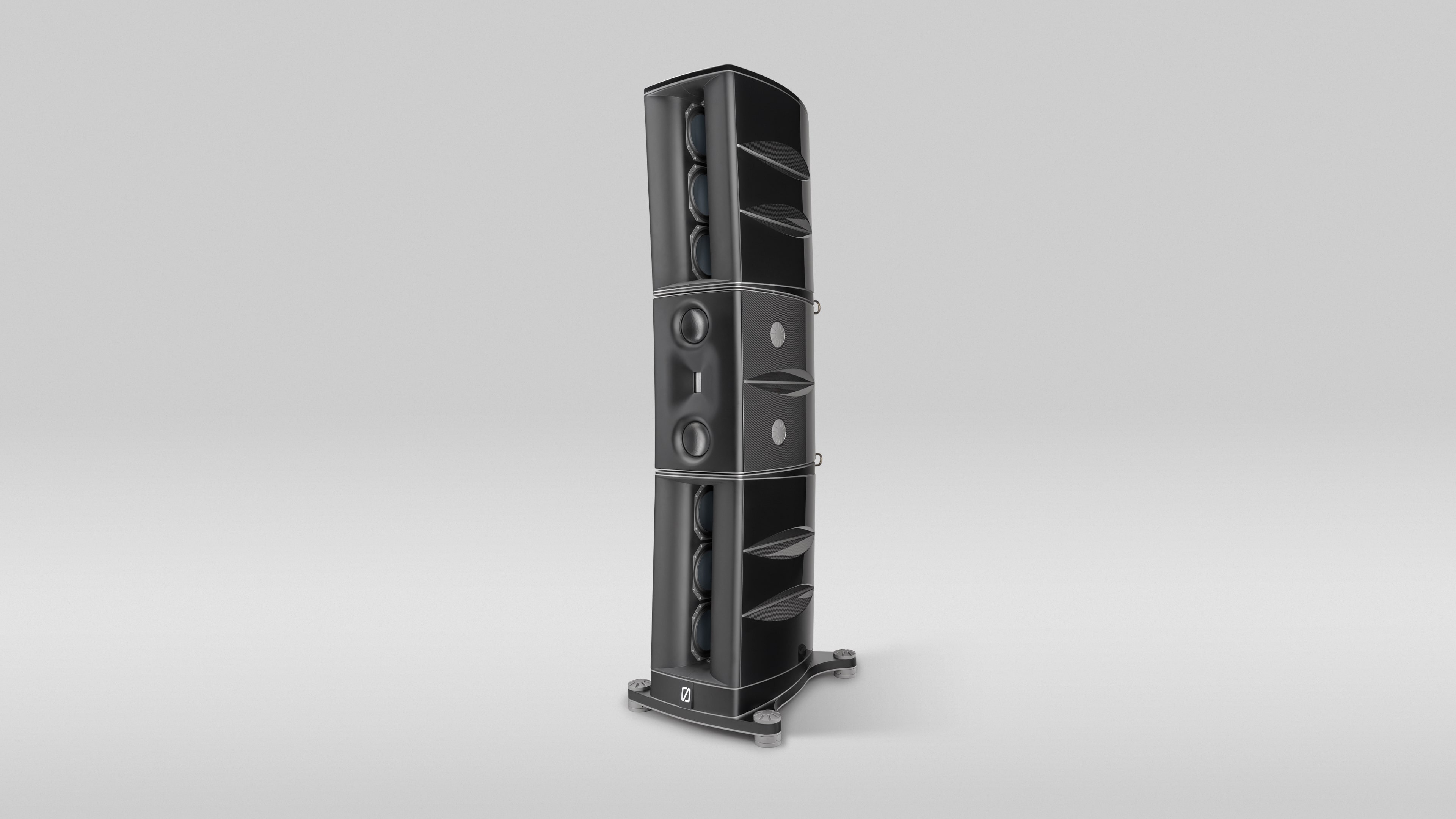

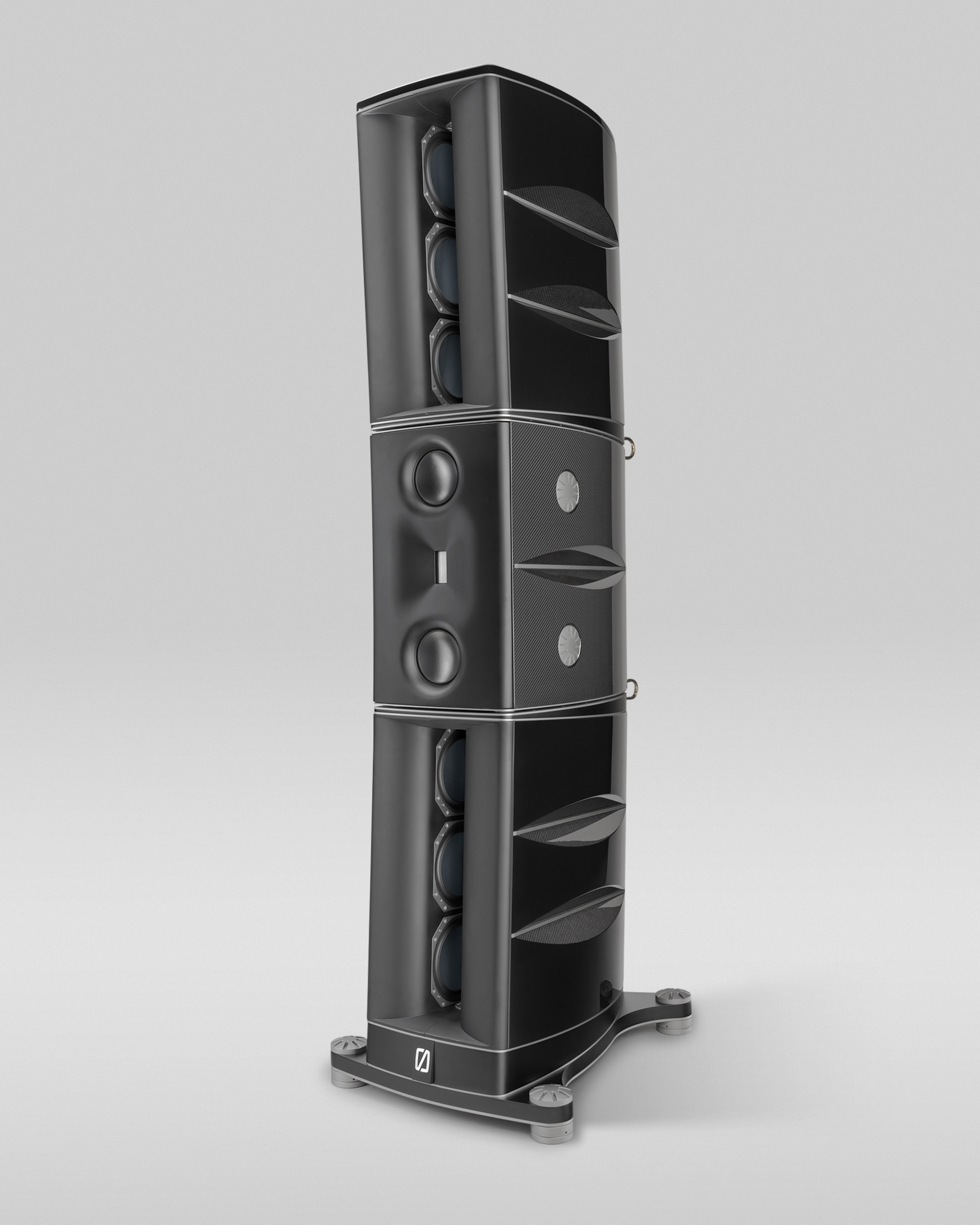

Drawing on Nordic furniture design traditions with a subtle influence of Italian elegance, the M8 Gold Signature balances visual refinement with clear mechanical intent. The gently sloped geometry is not merely aesthetic; it suppresses internal standing waves and minimizes parallel surfaces, creating a low-noise acoustic environment inside the enclosure.

This geometry reflects a broader design philosophy: a loudspeaker cabinet is far more than a housing for drivers—it defines the acoustic conditions in which they operate. Any stored energy or structural resonance within the enclosure will inevitably imprint itself on the sound. For the M8 Gold Signature, the cabinet is engineered to remain acoustically inert, allowing the transducers to perform with maximum linearity and purity.

The central cabinet is constructed from exceptionally dense, carefully selected wood-based laminates chosen for their natural damping properties. Thick, block-milled internal supports further stiffen the structure while also guiding internal airflow. Stainless-steel braces integrated along the side panels significantly increase rigidity, elevating the enclosure beyond any previous design.

The central cabinet is constructed from exceptionally dense, carefully selected wood-based laminates chosen for their natural damping properties. Thick, block-milled internal supports further stiffen the structure while also guiding internal airflow. Stainless-steel braces integrated along the side panels significantly increase rigidity, elevating the enclosure beyond any previous design.

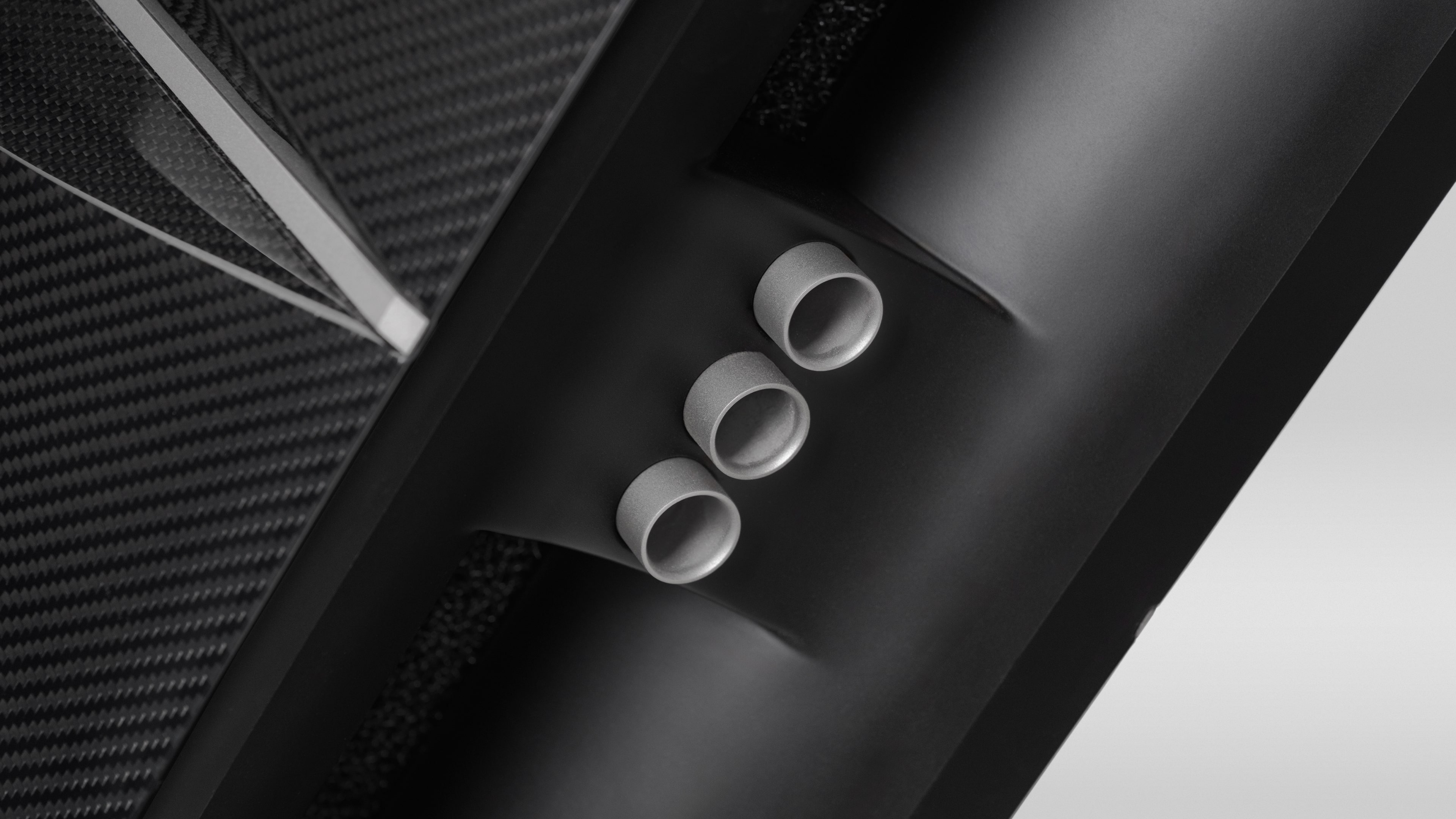

Folded Dipole Bass

Bass reproduction is as much about speed and control as it is about depth. Conventional subwoofer designs generate bass by compressing air inside an enclosure, producing omnidirectional output that interacts strongly with room boundaries. This often results in boominess, blurred transients, and listening fatigue.

The folded dipole principle addresses these limitations by allowing the drivers to radiate in opposing directions, with each driver’s front and rear strokes operating in opposite polarities, creating a figure-eight dispersion pattern that minimizes sidewall interaction. Rather than pressurizing the room, the system moves air in a more natural and controlled manner—closer to how acoustic instruments generate low frequencies.

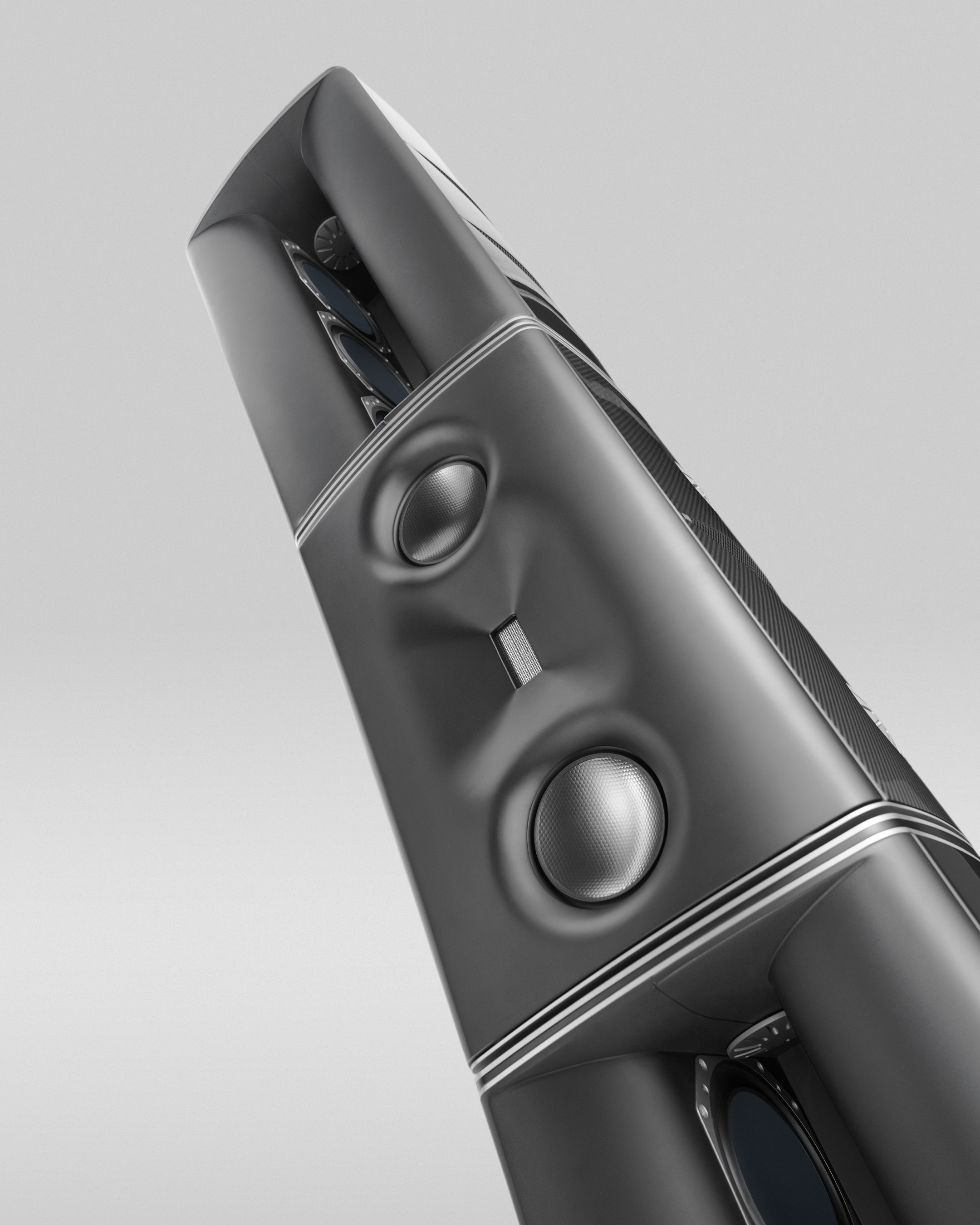

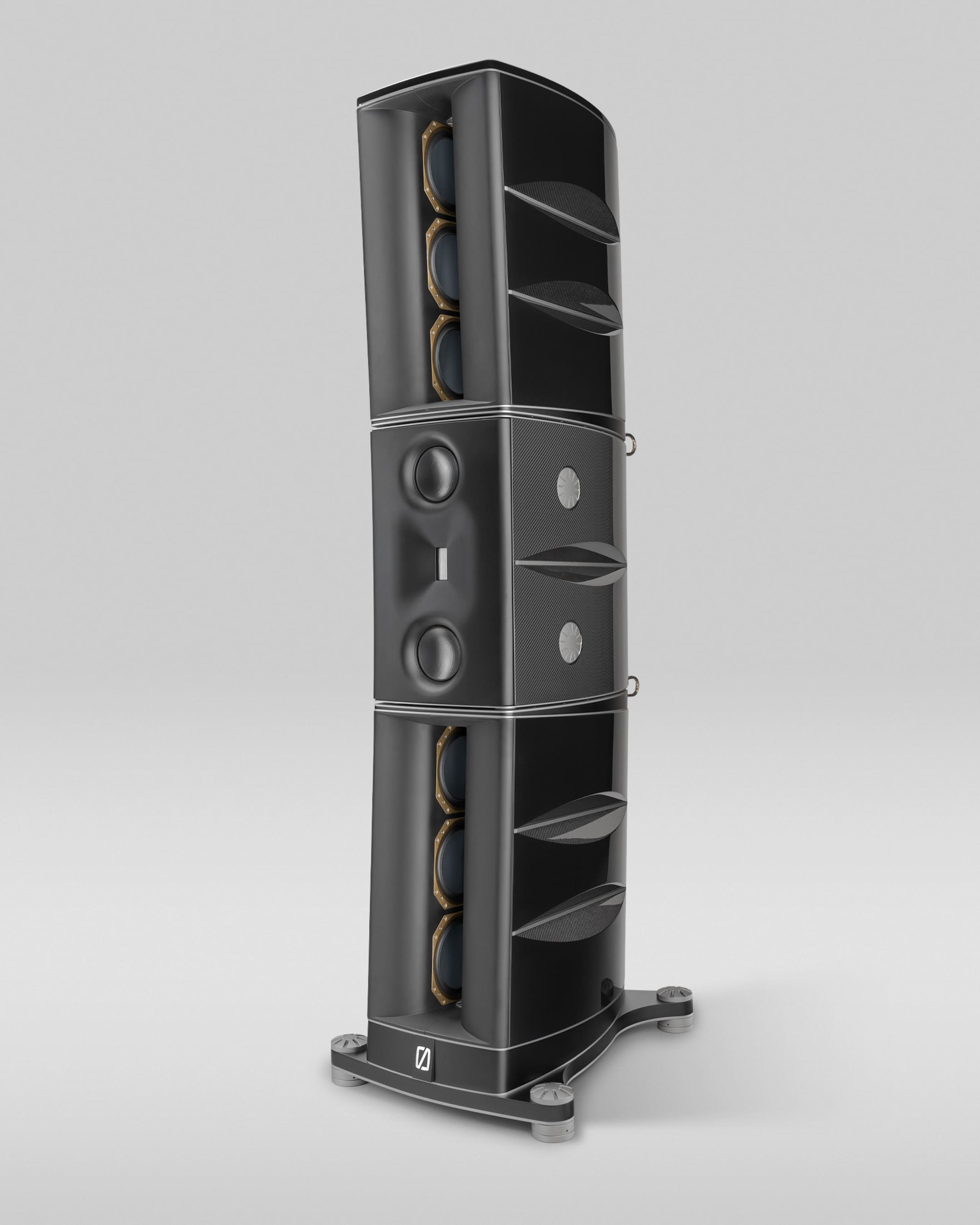

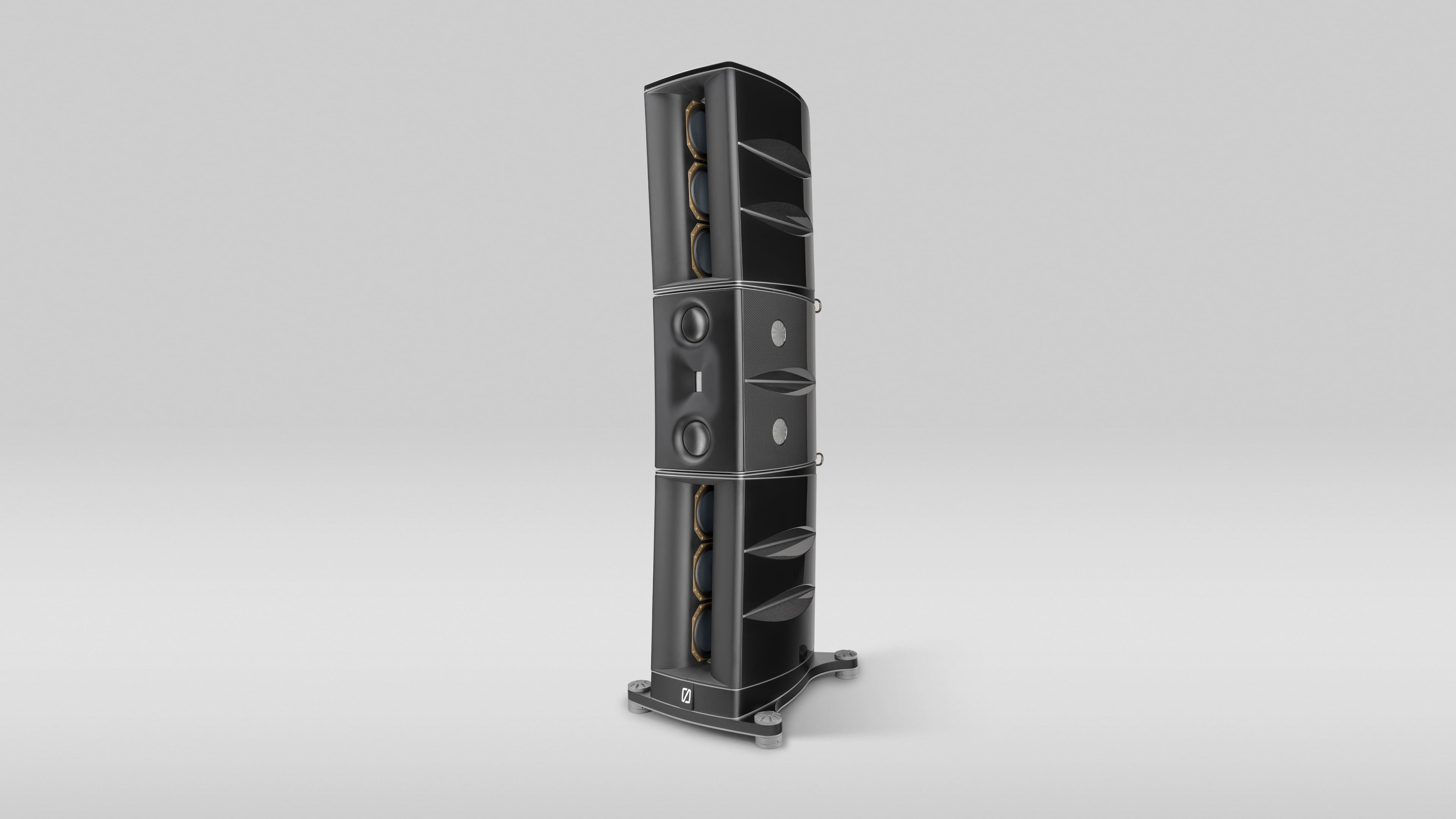

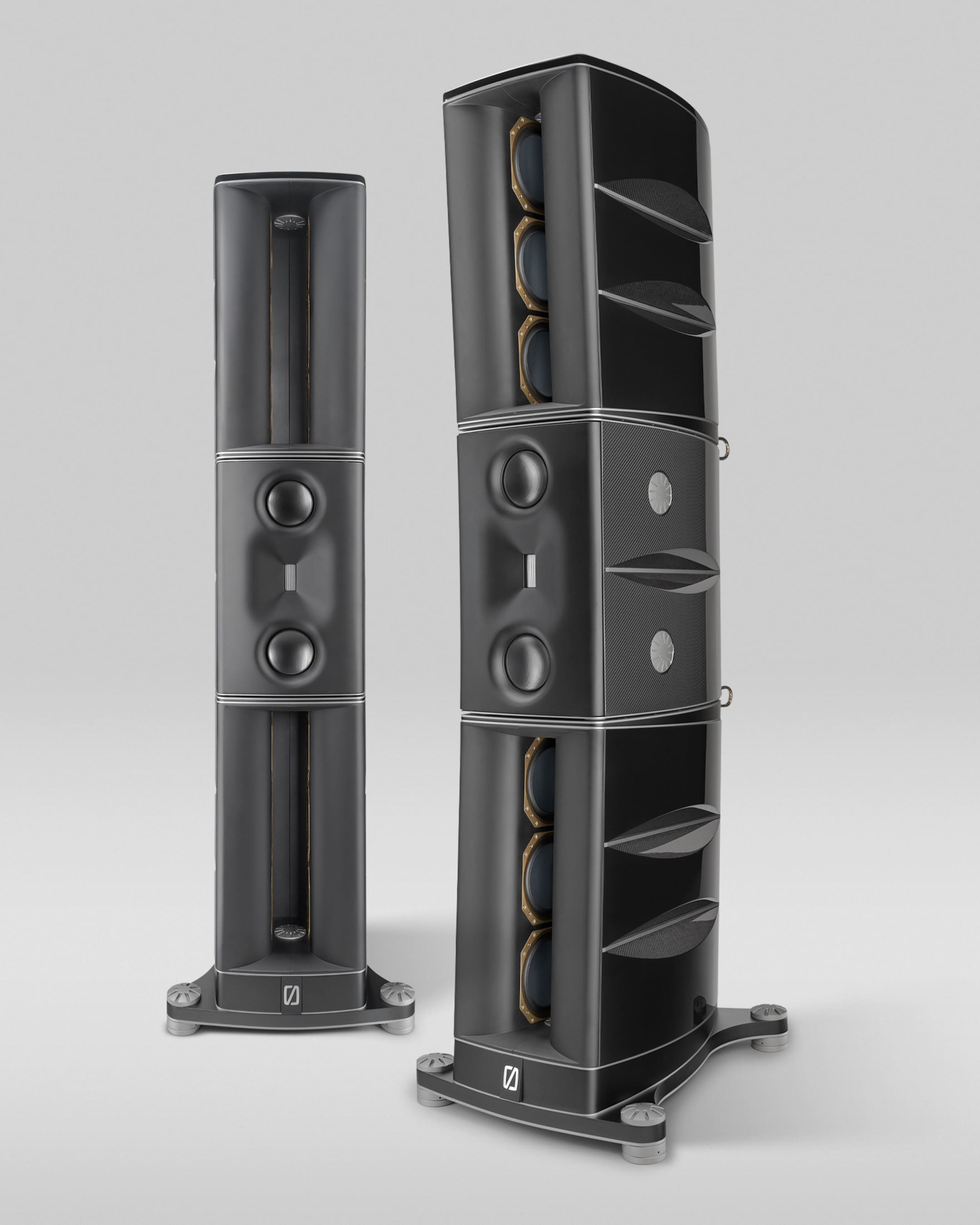

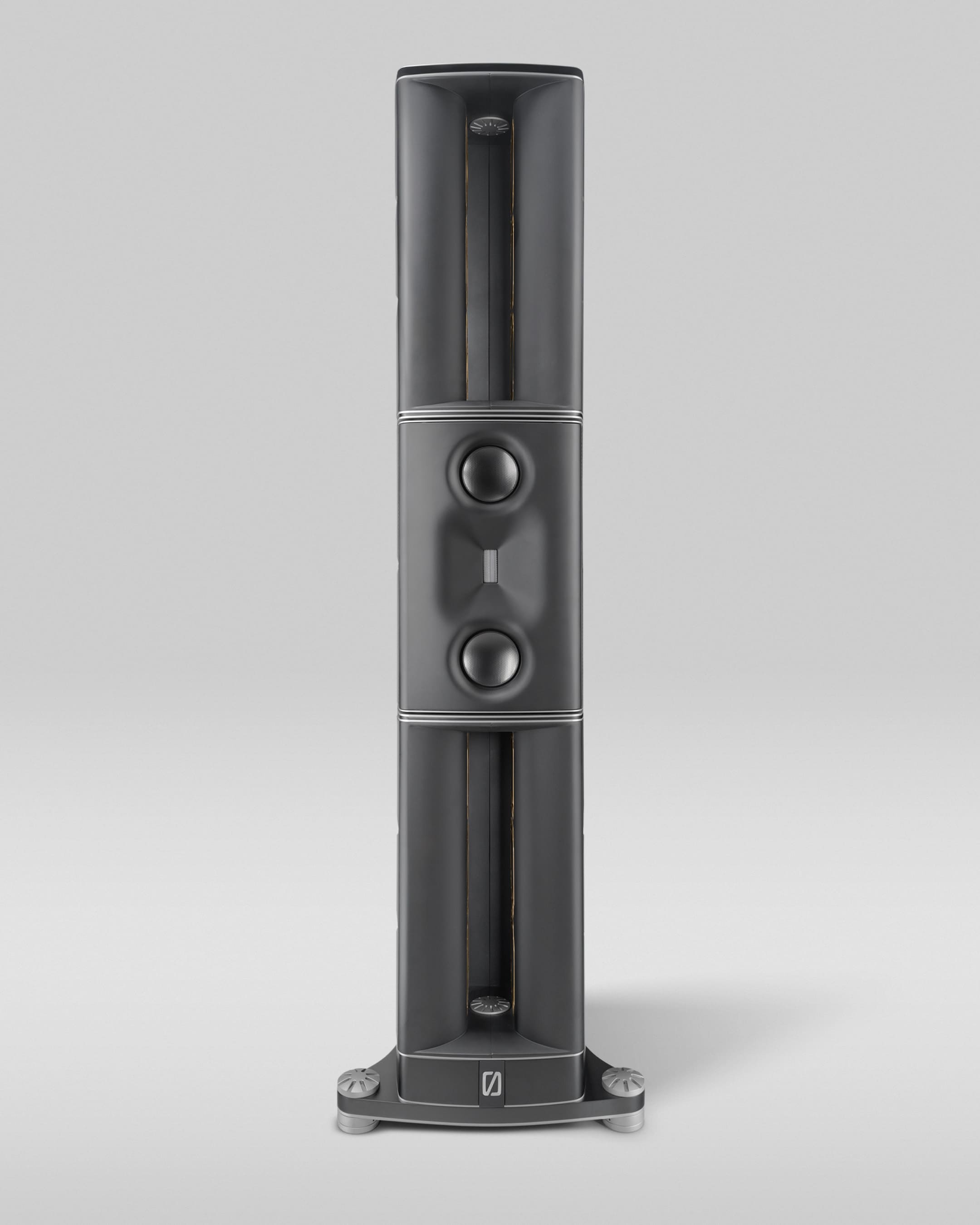

In the M8 Gold Signature, this concept is elevated to flagship scale. Each loudspeaker incorporates two folded dipole bass modules—one above and one below a central D’Appolito-configured midrange/tweeter array housed in its own enclosure. Each module houses six 8-inch drivers operating in mirrored pairs, resulting in a total of twelve 8-inch woofers per speaker.

Collectively, this configuration delivers a radiating surface area equivalent to more than three 15-inch woofers, yet with far lower moving mass and significantly faster transient response. The result is bass that is deep, clean, and lightning-fast, with minimal room interaction and exceptional integration with the midrange and high frequencies.

Unique Crossover Topology

In conventional loudspeaker crossovers, drivers are filtered primarily in the voltage domain, with each unit receiving a predefined frequency band. Børresen takes a fundamentally different approach by employing current-diversion crossover topology, which actively manages how current flows through the drivers across the crossover region.

By diverting out-of-band current into controlled impedance paths, this topology minimizes reactive energy storage within the drivers and reduces intermodulation artifacts caused by varying impedance. The result is improved phase integrity, lower distortion, and more linear electromechanical behavior—particularly through the critical midrange region.

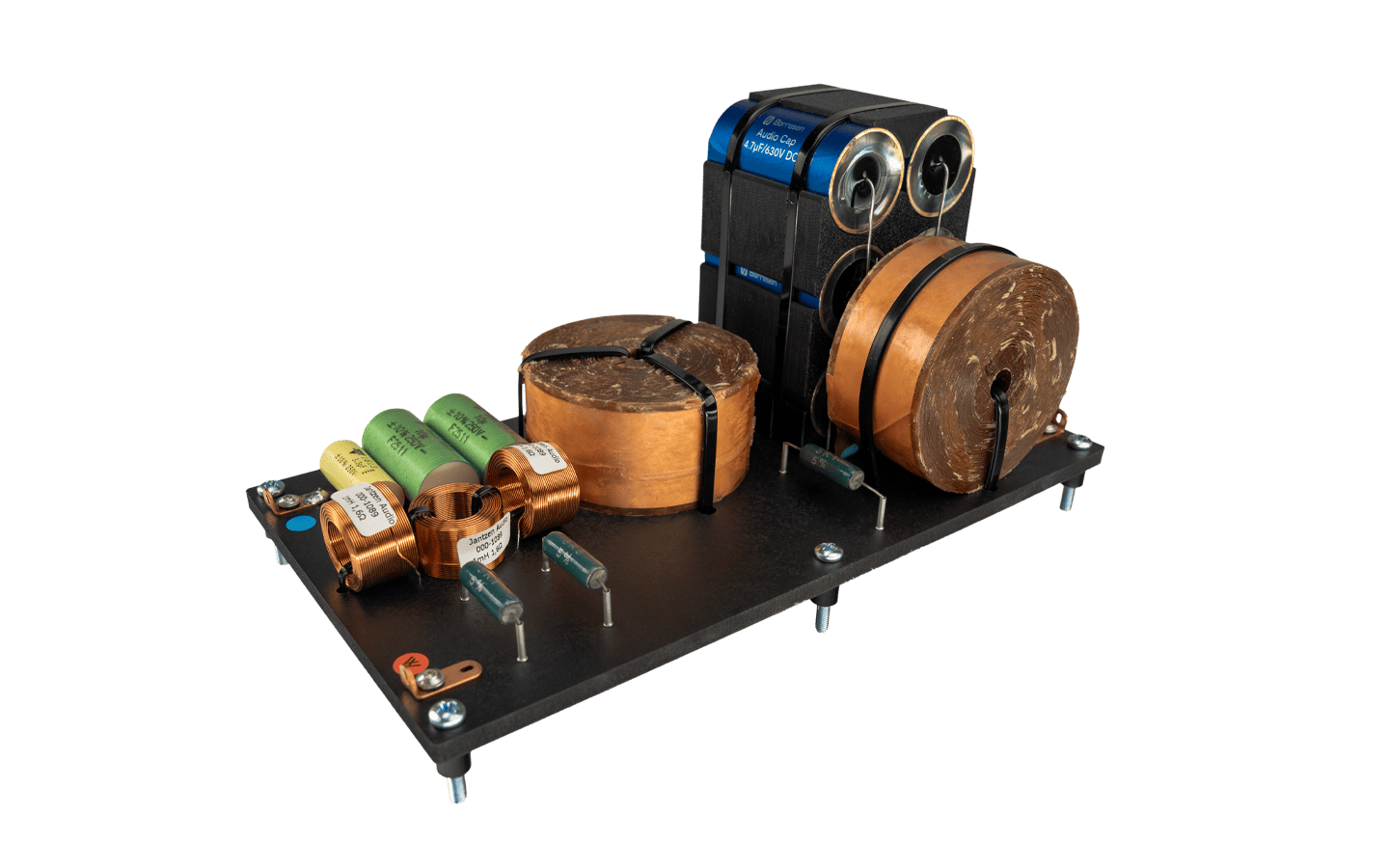

All crossover components are meticulously engineered. Foil coils wound with paper insulation are vacuum-impregnated with resin for mechanical stability. Copper foil capacitors provide minimal inductance and precise performance, while non-inductive Möbius resistors ensure exceptionally low noise and thermal stability in the tweeter circuit.

Rather than adopting conventional three-way filtering, the M8 Gold Signature employs a system architecture where the central enclosure operates as a highly optimized two-way array, supported by dedicated bass modules. This approach avoids the phase shifts typical of complex multi-way networks and preserves tonal saturation, coherence, and spatial energy.

Bi-amped with Care

The M8 Gold Signature is engineered to perform at its absolute best when bi-amped. Separate speaker terminals allow the bass modules and the midrange/tweeter enclosure to be driven by independent amplification, ensuring dedicated power delivery and improved control over each section.

Bi-amping increases system complexity, but the sonic benefits are substantial: tighter bass, improved clarity, greater dynamic headroom, and a more expansive soundstage. At Børresen, considerable effort has been invested in making this architecture intuitive and practical—only as complex as necessary to achieve the desired performance.

The M8 Gold Signature is specifically designed to integrate with Ansuz and Aavik electronics featuring fully analog, latency-free high- and low-pass crossovers. These circuits allow precise adjustment of bass output and seamless integration between the folded dipole bass modules and the midrange/treble enclosure.

Noise Rejection

Noise—whether acoustic, electrical, or airborne—is the enemy of musical realism. At Børresen, minimizing both internally generated noise and susceptibility to environmental interference is a core design principle. Every element of the M8 Gold Signature is engineered to preserve signal integrity by reducing noise at its source and preventing contamination from the surroundings.

The drivers, crossover networks, internal wiring, and cabinet construction all contribute to this effort. Ansuz reference-grade Gold Signature internal wiring is used throughout, while proprietary noise-reduction technologies are embedded directly into the crossover boards.

Each driver stage is supported by dedicated boards populated with Active Square Tesla Coils, Analog Dither Technology circuits, and Gold Anti-Aerial Resonance Coils. These systems work together to suppress incoming noise, reduce RF interference, and stabilize the signal environment in real time.

The active noise-suppression circuits can be powered by the included external power supply or, for ultimate performance, by an Ansuz PowerBox. In either configuration, the result is a dramatically lower noise floor, enhanced micro-detail, and a more immersive, three-dimensional musical presentation.

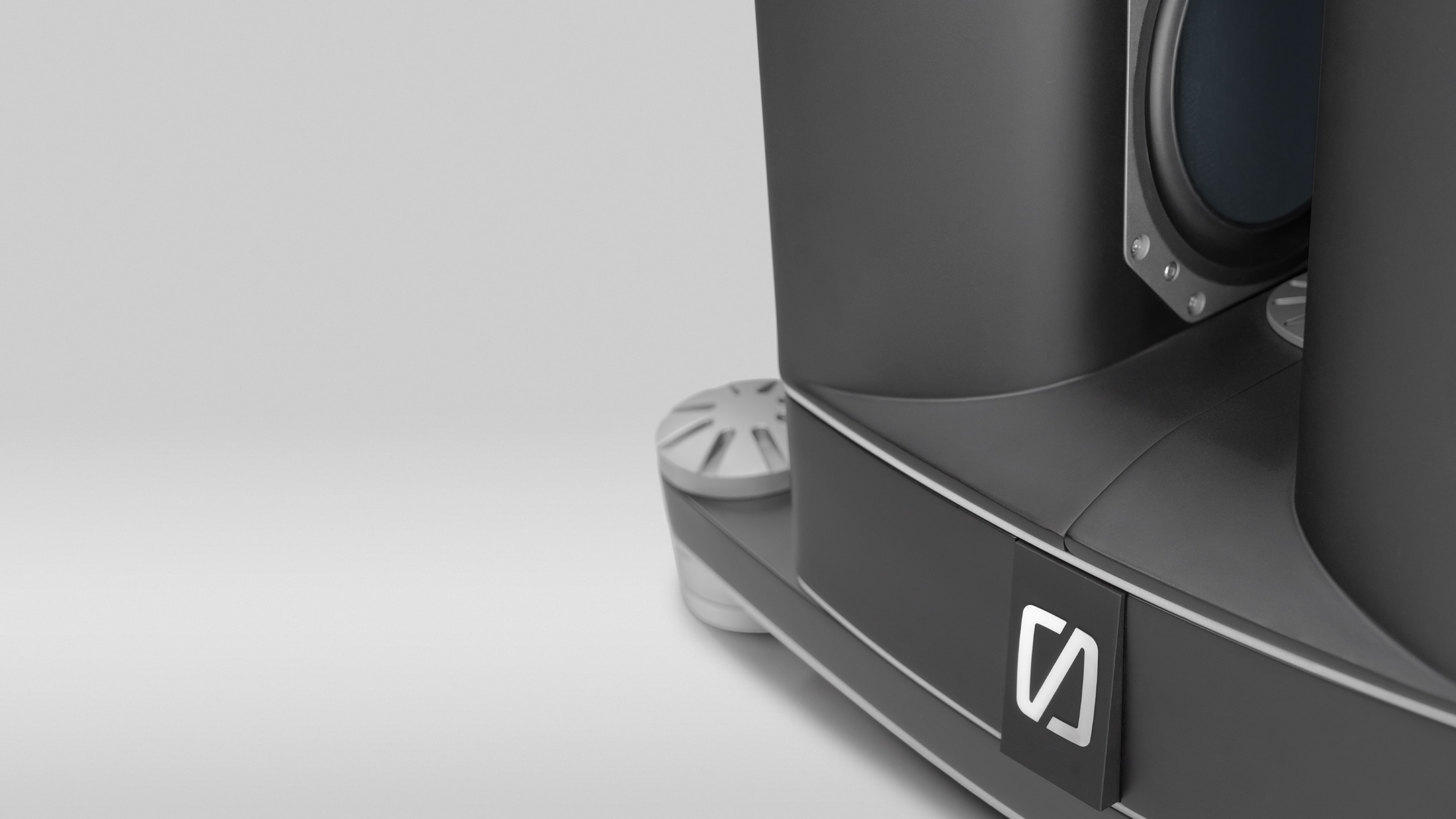

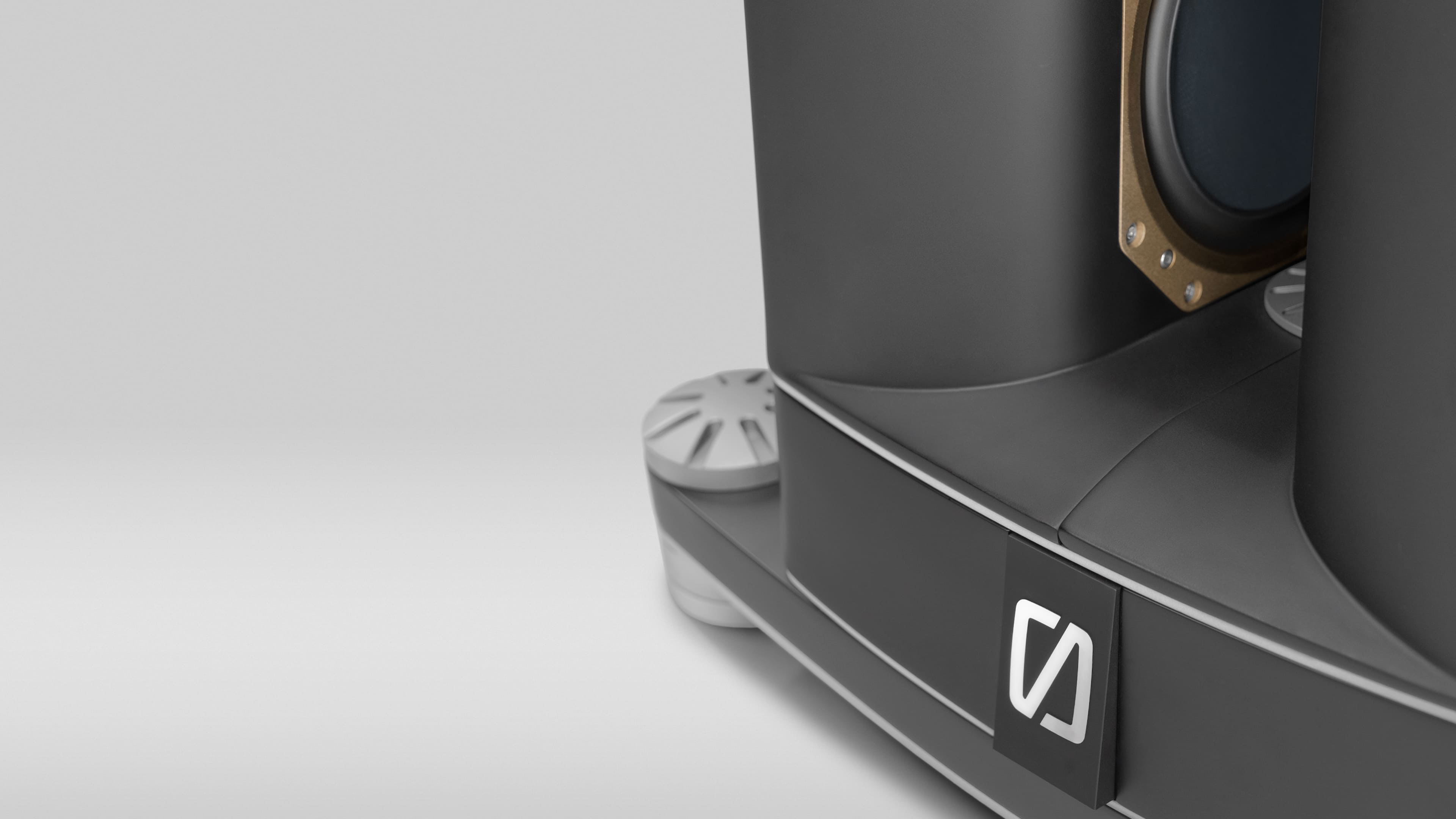

Mechanical Grounding

Vibration transmitted through the floor can compromise loudspeaker performance by introducing mechanical noise into the system. To address this, Børresen loudspeakers are engineered to interface seamlessly with Ansuz Darkz resonance control devices.

Darkz devices use ball bearings positioned between extremely hard discs machined from exotic materials such as titanium and zirconium. This configuration prevents floor-borne vibrations from entering the loudspeaker while providing a controlled path for internally generated resonances to dissipate.

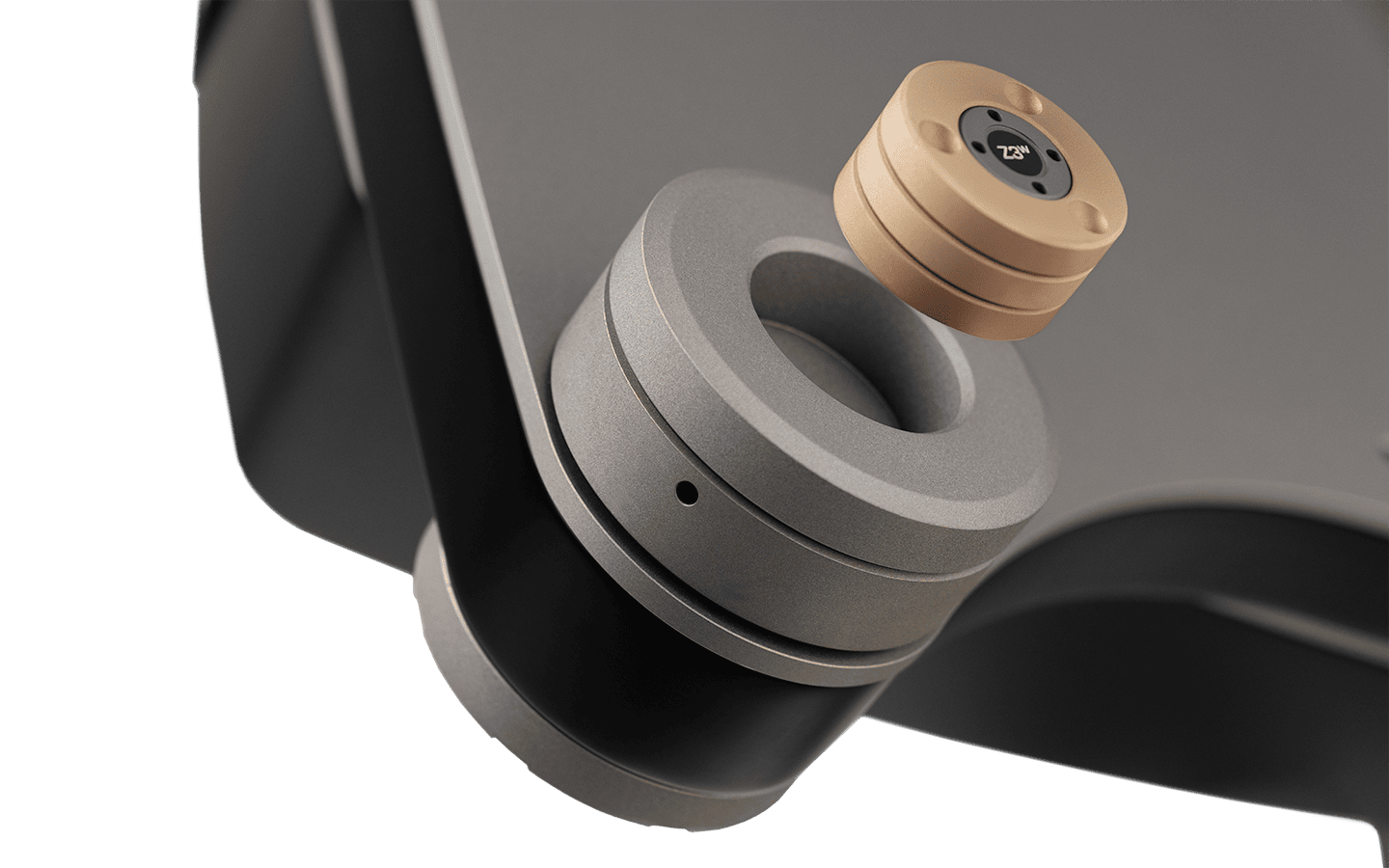

The M8 Gold Signature is supplied with Ansuz Darkz Z3W decoupling devices, featuring zirconium discs coated with zirconium nitride and hafnium. These devices are strategically placed to maximize resonance control and ensure that vibrational energy never feeds back into the cabinet or drivers.

The result is greater clarity, improved bass articulation, and an increased sense of calm and stability in the soundstage—benefits that cannot be achieved through electronic or acoustic design alone.

Meticulous Quality Control

Every Børresen loudspeaker is hand-assembled at the Aalborg facility and inspected, tested, and measured at every stage of production. Each M8 Gold Signature is compared directly to a reference model and only approved when it matches it exactly.

Measurements alone are not enough. One of the most important tools in the final quality-control process is listening. Every finished loudspeaker is auditioned to ensure that it delivers sound that is experienced as music—alive, dynamic, emotionally engaging, and faithful to the original performance.

This uncompromising approach ensures consistency without compromise, allowing each M8 Gold Signature to leave the factory as a true reference product.

Made in Denmark

The Børresen M8 Gold Signature is designed and assembled in Denmark at Audio Group Denmark’s continuously expanding facility in Aalborg. Over the years, significant investments have been made in advanced manufacturing technologies, including cryogenic processing, precision CNC milling, smelting furnaces, and specialized assembly lines.

While core technologies and critical processes are developed and executed in-house, select components and services are sourced from carefully chosen partners who share our commitment to precision, quality, and professionalism. This focused approach allows us to concentrate on what we do best: inventing and crafting extraordinary loudspeakers in service of the music.
